Document #98210104 3 - 9
Prop-Air Wiring
This section is for the Prop-Air Braking System,
Standard Brake customers should skip this section.
Step 1
Connect the Prop-Air Cable (pg. 3-22, letter C) to
the EPR.
! You will need to remove the clear plastic cover
from the EPR.
! Plug the Prop-Air Cable into the terminal
block on the EPR.
Step 2
Connect the Modified Power Supply wire to the
224-4WD Power Cord (pg. 3-22, letter D) with the
two pin connector.
Step 3
Connect the Control Pendant into the Control
Pendant Cord (pg. 3-22, letter E) with the three pin
connector.

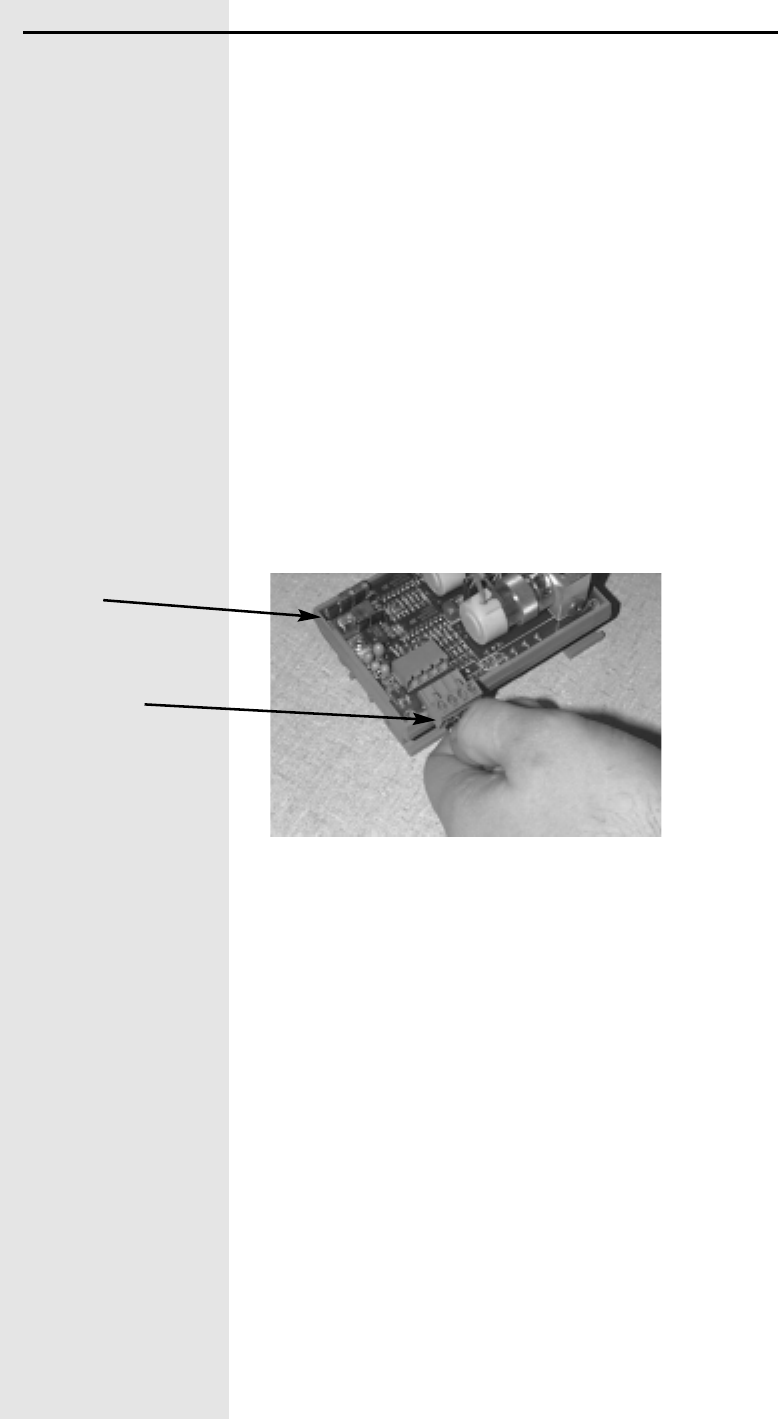

Prop-Air Cable
EPR
