Page 14
26. 04594 - EPDM Black Tubing
27. 05561 1 Solenoid Valve
28. 09153 1 Master Cylinder Gasket (not shown)
29. 10373 1 Brass Fitting Str. .2 HB x 10-32 NF
30. 10374 2 Crimp Clamp
31. 10375 1 Straight Nipple 1/8” MPT x 1/8” MPT
32. 10376 1 Brass Elbow 1/8” MPT x .2 HB
33. 11675-95 1 Soleoid Cover Plate
4
3
1
6
4
9
8
8
5
5
7
9
9
9
**22
23
13
21
10
**11
14
14
**16
19
18
17
24
20
15
15

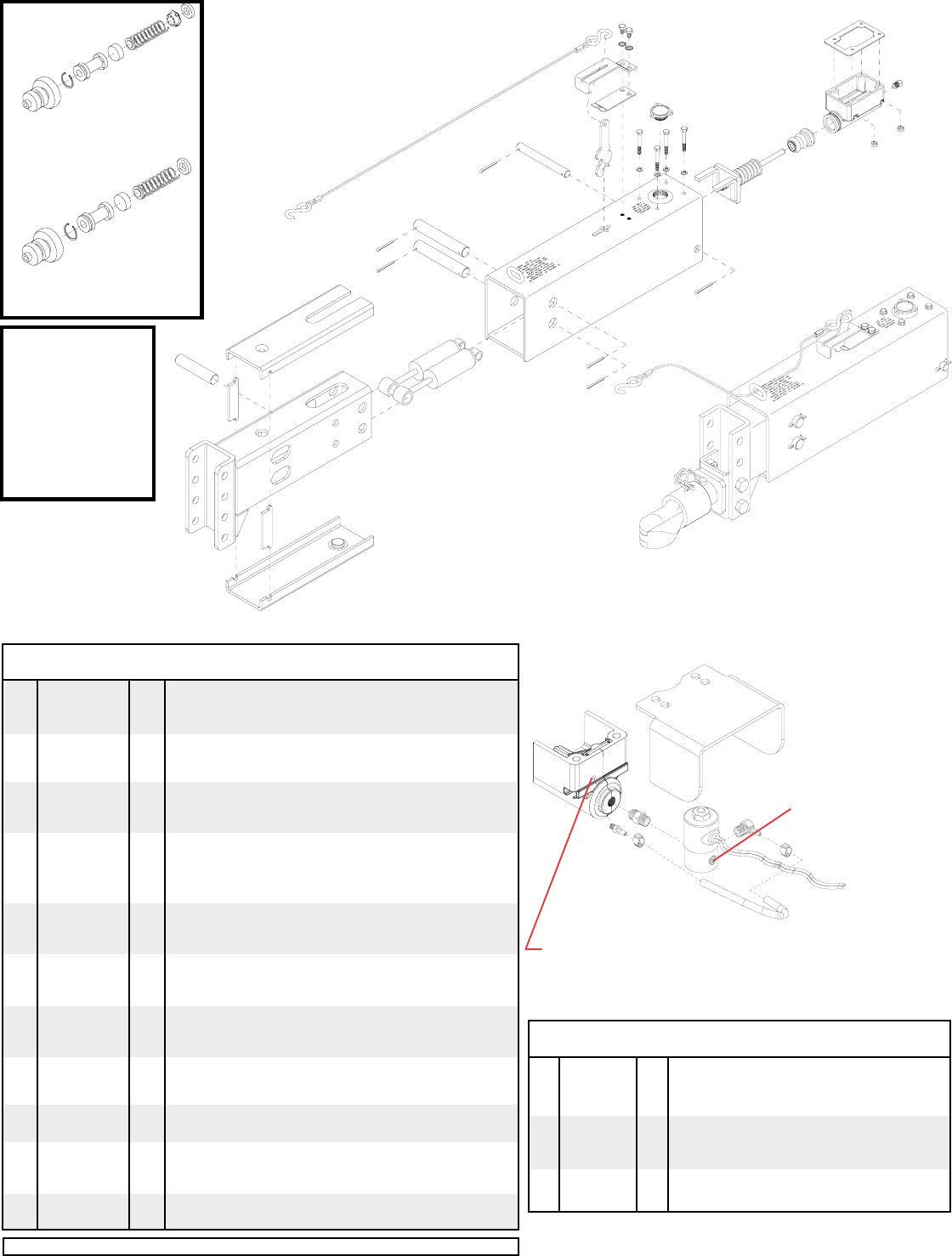

MODEL DA20 ACTUATOR PARTS BREAKDOWN
REF.
NO. PART NO. QTY. DESCRIPTION
Model DA20 ACTUATOR PARTS LIST
Outer Case Without
Mounts and Channel
Down Slider Tube
Shown, See Page 15
for Other Options
12
2
25
25
(OPTIONAL) FREE BACKING
SOLENOID KIT PARTS BREAKDOWN
5753 (FIELD INSTALL)
5754 (FACTORY INSTALL)-(DRUM)
5755 (FACTORY INSTALL)-(DISC)
REF. PART
NO. NO. QTY. DESCRIPTION
KIT #5753 PARTS LIST
Drill the hole using a 5/32” bit. Hole location
is .900” right of top left corner and .900” down
from top of master cylinder. Tap hole with 10-32 NF tap
26
27
29
30
31
32
30
Note: -?? = -95 Plated -97 Primed Red -35 Black
Please order replacement parts by PART NO. COLOR
and DESCRIPTION
Remove Fitting (#20)
from Master Cylinder
and relocate to this hole
5650 Master Cyl.
Replacement Kit
(drum)
(gasket 09153 and
fasteners included)
5482 Master Cylinder
Repair Kit (disc)
(gasket 09153 included)
- 5401 - Lever Replacement Kit (incl. items w/**)
5672 Master Cyl.
Replacement Kit
(disc)
(gasket 09153 and
fasteners included)
5398 Master Cylinder
Repair Kit (drum)
(gasket 09153 included)
33
1. 11042-?? 1 Inner Slider Tube Chan. Down (Shown)
- 11044-?? - Inner Slider Tube Channel Center
- 11050-?? - Inner Slider Tube Channel Up
2. 10962 1 Top Wear Pad
3. 10963 1 Bottom Wear Pad
4. 10964 2 Spacer Block
5. SB12426 2 Damper Shock
6. 03409-95 1 Front Shock Pin (zinc plated)
7. 03412-?? 1 Outer Case (03412 shown see page 15 for others)
8. 03411-95 2 Connecting Pin (zinc plated)
9. 02363 6 5/32" x 1-1/4" Cotter Pin
10. 03410-95 1 Rear Shock Pin (zinc plated)
**11. 05693-95 1 Emergency Lever Spring (Plated)
12. 05424 2 5/16" External Tooth Lock Washer
13. 05961 2 5/16"-18 UNC x 5/8" Hex Head Bolt Gr.5
14. 00618 4 1/4"-20 UNC x 2" Hex Head Bolt Gr.5
15. 00057 4 1/4" Lock Washer
**16. 05951 1 Emergency Lever (zinc plated)
17. 03534 1 Push Rod Assembly
18. 10616 1 Composite Master Cylinder (drum)
- 11190 1 Composite Master Cylinder (disc)
19. 09153 - Replacement Master Cyl. Gasket ONLY
20. 05679 1 1/8" pipe - 3/16" Inverted Flare Fitting (Drum)
20. SB12098 1 1/8" pipe - 3/16" Orfice Flare Fitting (Drum)
21. 03876 1 Master Cylinder Cap w/ Diaphragm and O-Ring
- 05849 - O-Ring (replacement)
**22. 05408 1 3/32" Cable with hooks (both ends)
- SB10555 - Replacement S-hooks ONLY
23. 03866-95 1 Lever Guide (zinc plated)
- BH21003 - Replacement Towable/Not Towable Decal
24. 05687 1 Master Cyl. Protective Boot
25. 00062 4 1/4”-20 UNC Hex Nuts
