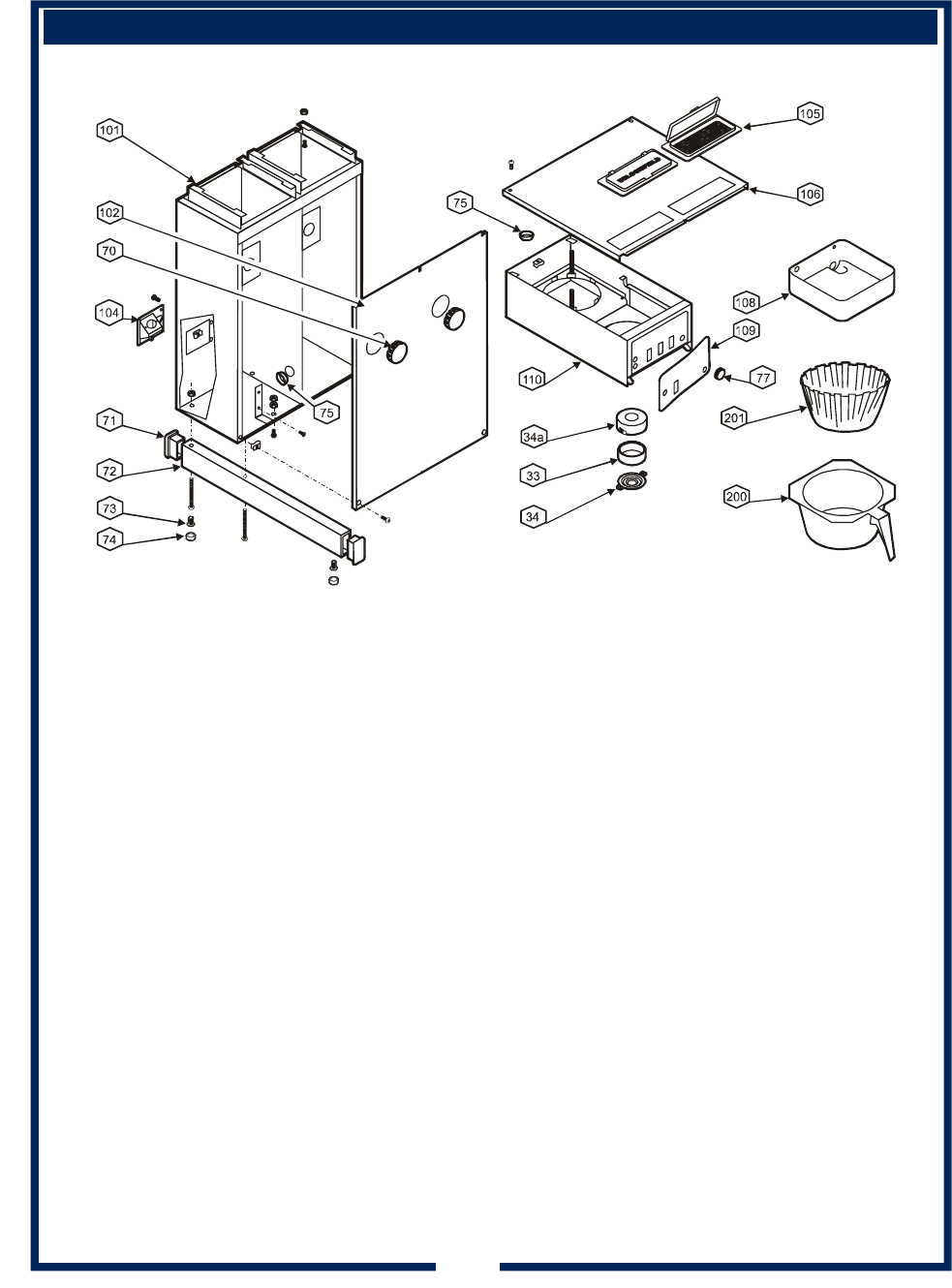

EXPLODED VIEW & PARTS LIST (continued)
CABINET COMPONENTS
ITEM PART NO. DESCRIPTION USED ON
33 8543-42 Spray Head Gasket All
34 82727 Spray Disk All
34a 8543-45 Spray Head Retainer All
70 8706-75 Button Plug (Timer) All
71 82159 Cap, Plastic, Lower Support All
72 82162 Leg, Aluminum Black, Right All
84718 Leg, Aluminum Black, Left All
73 8033-55 Leveler, Adjustable Leg All
74 8033-56 Cap, Adjustable Leg All
81732 Adjustable Leg Assembly All
75 8543-69 Heyco Bushing All
77 8810-12 Button Plug (Non-Faucet) Left Side Only
101 Body, Welded Assy All
102 Front Panel All
104 8572-34 Access Door, Solenoid All
105 86666 Pour-Over Assembly All
106 86700 Top Panel All
108 8541-21 Basin Pan (Automatic) All
109 84809 Label, Gourmet 1000 All
110 Basin Body, Welded Assy All
200 8942-6B Brew Chamber, Black All
8942-6 Brew Chamber, Brown All
8707-6 Brew Chamber, Stainless All
201 POF Bloomfield Paper Filter (pk 1000) All
21
625 75873 Owners Manual Gourmet 1000 Dual Airpot Brewers
