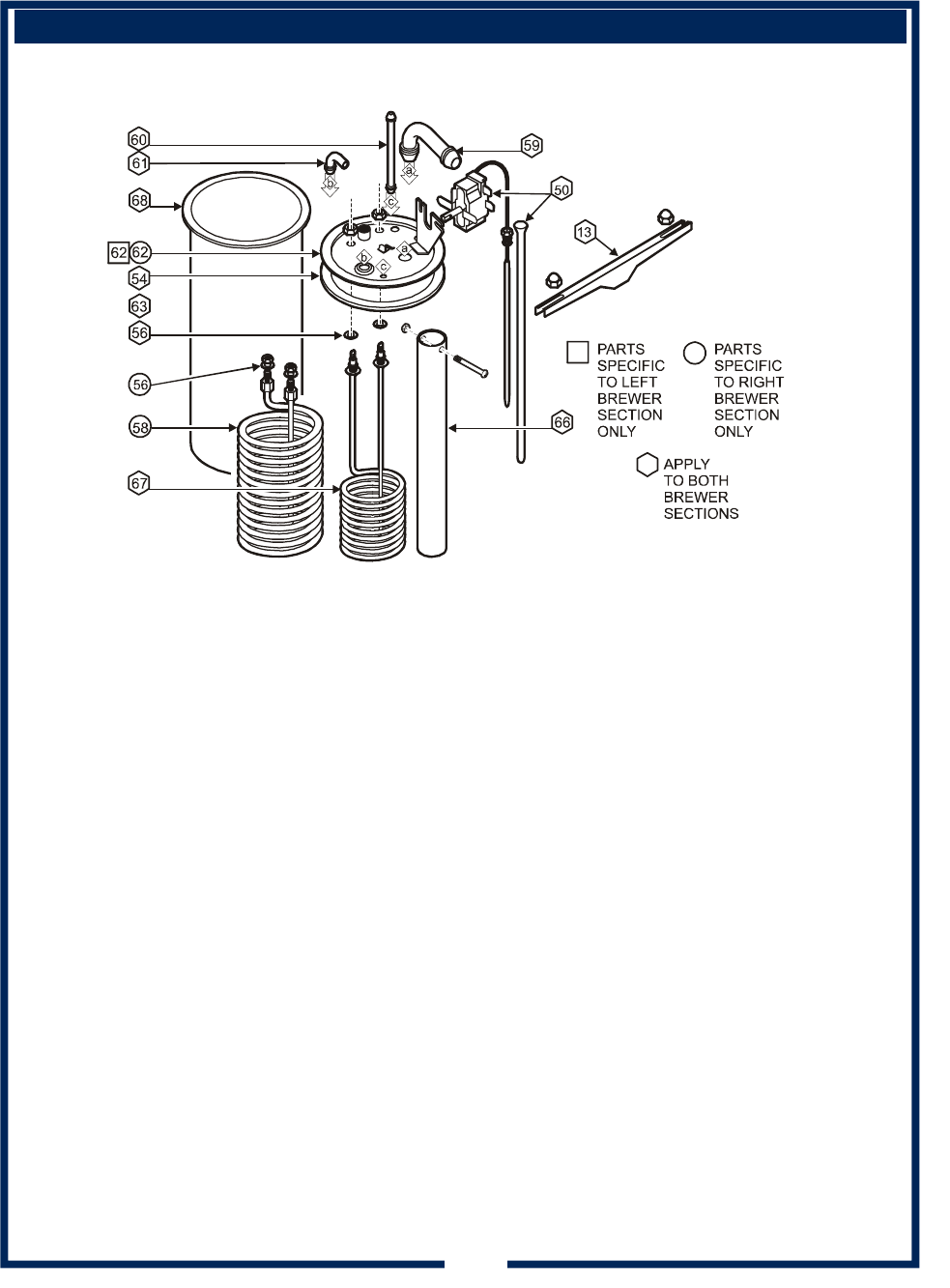

EXPLODED VIEW & PARTS LIST
HOT WATER TANK ASSEMBLY
ITEM PART NO. DESCRIPTION USED ON
13 8043-5 Hold Down Strap All
50 86280 Thermostat w/Thermo Well All
54 8043-12 Tank Cover Gasket All
56 8043-30 Seal Gasket All
58 8540-6 Hot Water Coil Right Side Only
59 8043-8 Inlet Elbow All
60 8043-15 Vent Tube All
61 8043-11 Outlet Elbow All
62 8512-45 Tank Cover (Plate Only, 6 holes) Left Side Only
8514-68 Tank Cover (Plate Only, 8-holes) Right Side Only
66 8043-24 Water inlet Tube All
67 8549-1 Heating Element (120V 2000W) 8790, 8792
8716-1 Heating Element (230V 3500W) 8791, 8793
68 8043-10 Tank Body All
COMPLETE SPARE TANK COVER
8549 WF-300 Spare Cover Assembly (120V, 2000W 8790, 8792
With Coil - all parts mounted to cover)
8716-300 Spare Cover Assembly (230V, 3800W 8791, 8793
With Coil - all parts mounted to cover)
