108 Chapter 3

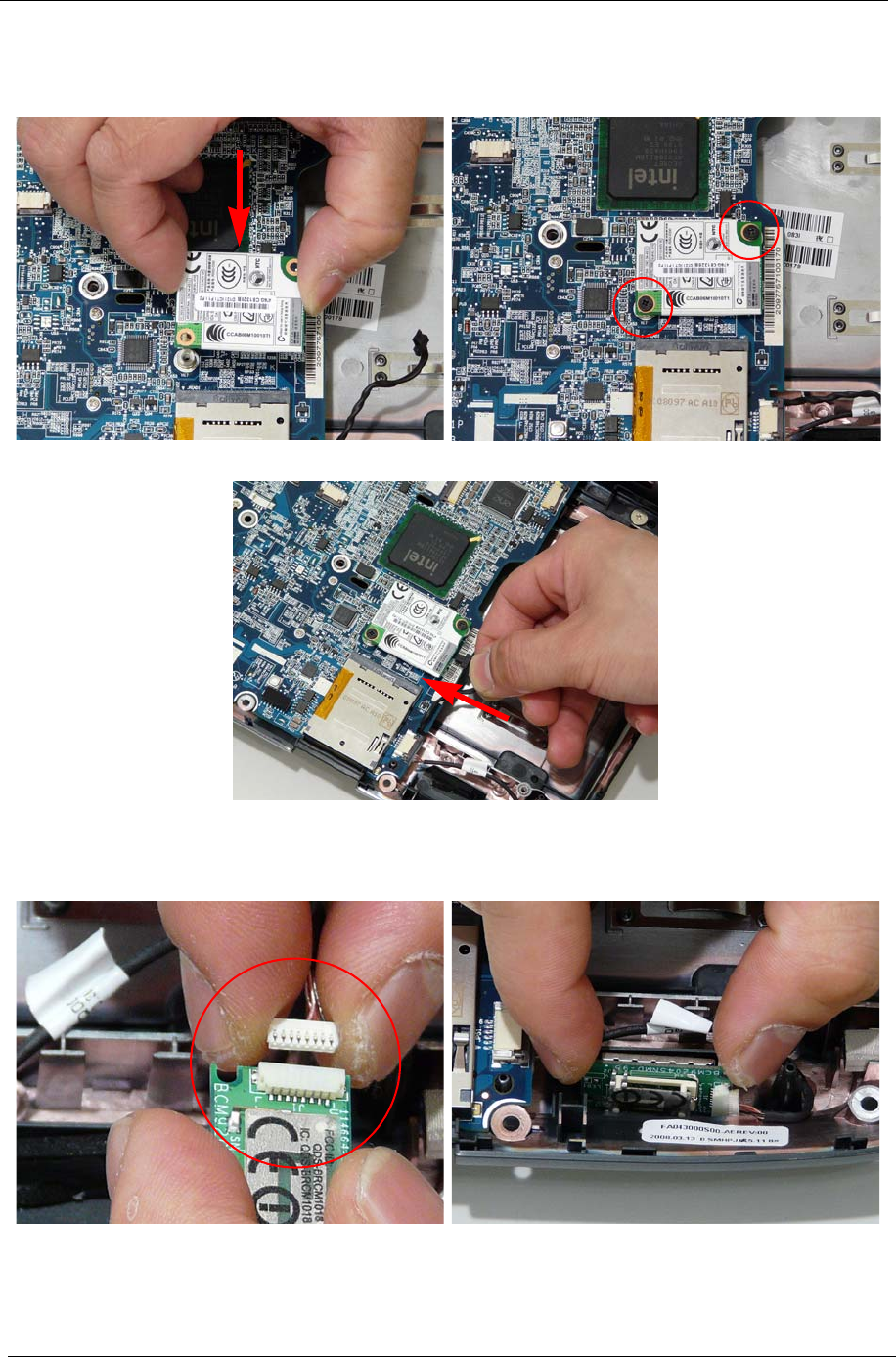

Replacing the Modem Module
Replacing the Bluetooth Board
1. Align the connectors on the mainboard and the
module and insert the module in place.
2. Replace the two securing screws on the modem
module.
3. Connect the modem cable to the module.
1. Reconnect the cable to the module as shown. 2. Insert the module into the lower base as shown.
