100 Chapter 3

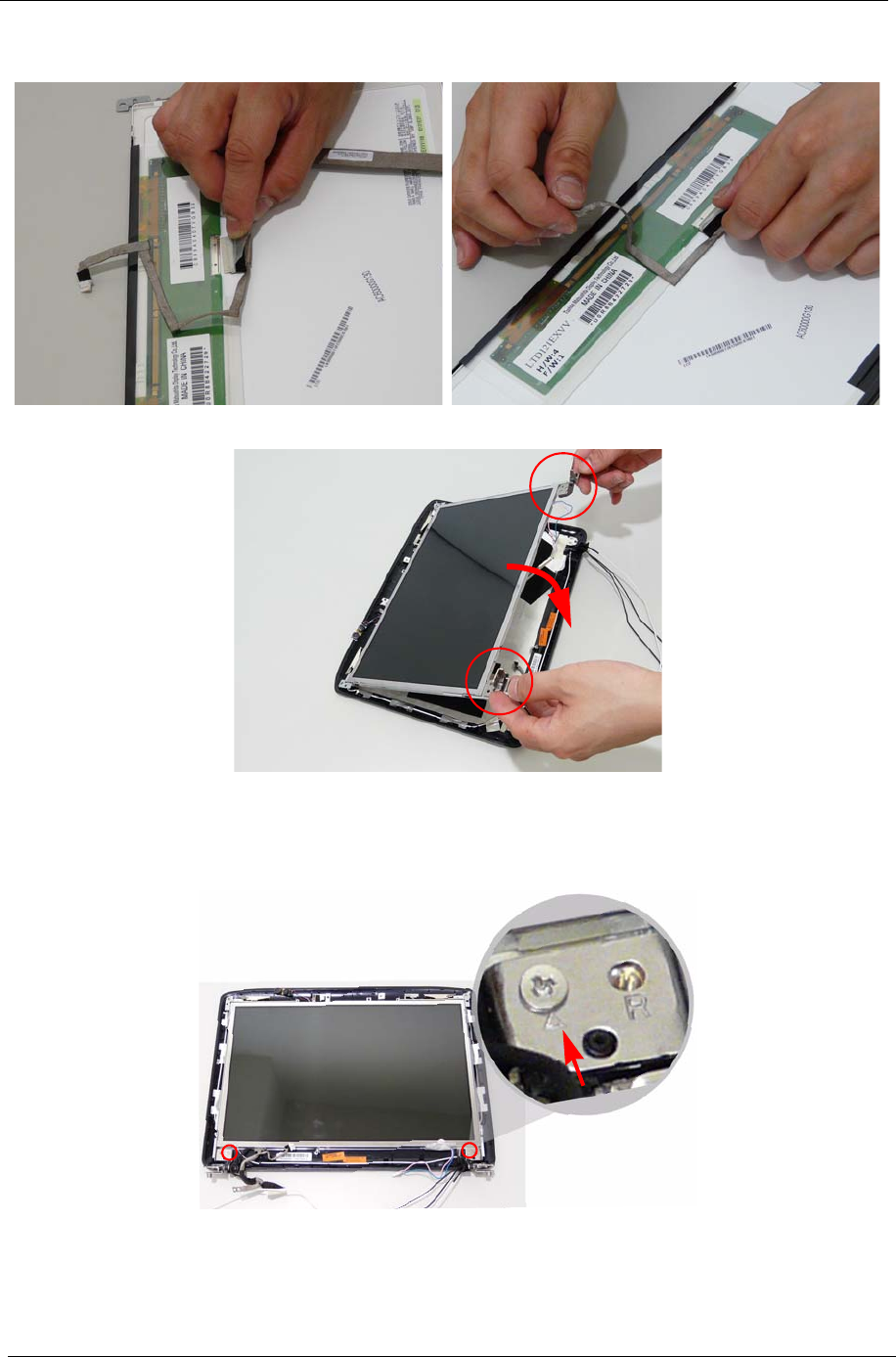

9. Connect the LCD cable to the panel. 10. Replace the cable and press down attach the
adhesive strips.
11. Insert the top of LCD Panel first and tilt down in place.
IMPORTANT:Ensure all cabling is tucked correctly in the back cover.
12. Replace the two (2) securing screws on the LCD Module.
IMPORTANT:The correct screw sockets are indicated by the mark on the hinge.
