PERIODIC MAINTENANCE AND MINOR REPAIR
EAU19210

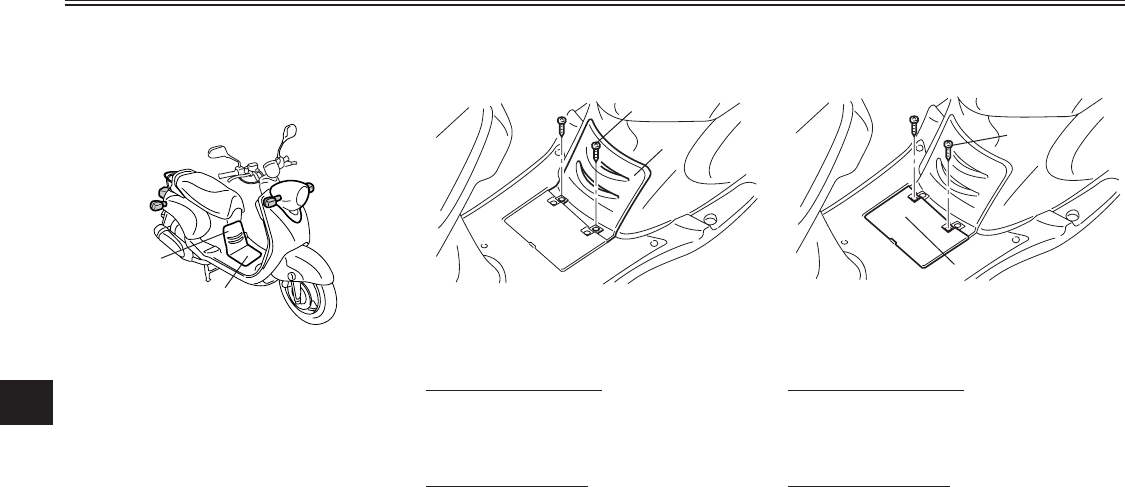

Panel A
1
2
ZAUM00**
1. Panel A
2. Screw (x2)
To remove the panel
Remove the screws, and then take the
panel off.
To install the panel
Place the panel in the original position,
and then install the screws.
EAU19210
Panel B
1
2
ZAUM00**
1. Panel B
2. Screw (x2)
To remove the panel
Remove the screws, and then take the
panel off.
To install the panel
Place the panel in the original position,
and then install the screws.
EAU18771
Removing and installing pan-
els
1
2
ZAUM00**
1. Panel A
2. Panel B
The panels shown above need to be re-
moved to perform some of the mainte-
nance jobs described in this chapter.
Refer to this section each time a panel
needs to be removed and installed.
