Shoprider Sunrunner S Mobility Aid User Manual



9/22/2004
8

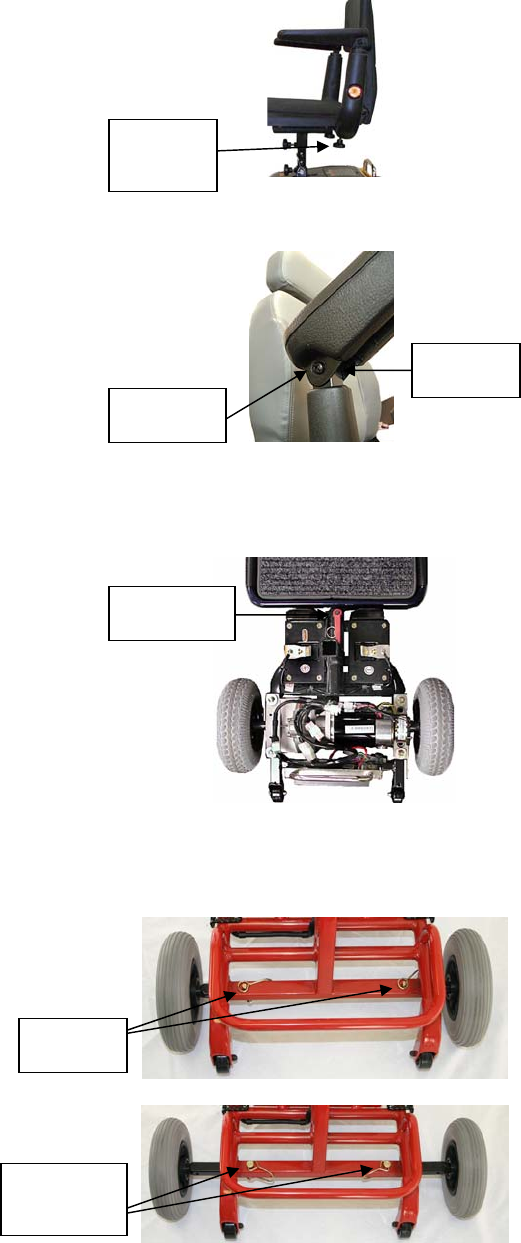

Armrest Width Adjustments (Fig. 9)
On the underside of the seat there are two hand
knobs, one on each side. Loosening the arm rest
tightening knob allows the armrest width to be
adjusted or arm rests to be removed.
Armrest Angle Adjustment (Fig. 10)
Flip up the armrests to allow access to the
adjustment screw and lock nut, unscrew the lock
nut and screw the bolt in or out to increase or
decrease the angle. Re-tighten the lock-nut.
Your scooter is dispatched from the factory with
the armrests set parallel to the floor.
Scooter Length Adjustment (For Scootie &
Sunrunner S ) (Fig. 11)
The wheel base can be lengthened or shortened
depending on its existing settings. The standard
length of the scooter can be extended up to 3
inches. To adjust the wheelbase, remove the
seat and the chassis cover complete with
integral batteries. Remove the locking pin
located at the front of the seat post (Fig. 8).
Unscrew the red hand lever in front of the pin
by turning counter-clockwise. Loosen the clips
that secure the wires along the chassis. Slide the
inner front section until the location holes
become aligned. Insert the locking pin and
tighten the red hand lever, insuring when fully
secured, the lever is facing the seat post as
shown in Fig. 11. Replace the chassis cover with
the integral batteries then replace the seat.
Scooter Width Adjustment (For XtraLite 3)
(Fig. 12)
Remove seat as described above. Remove rear
basket. Remove U-shaped pins, adjust wheels
to proper hole. Replace U-shaped pins.
Caution – Width of the wheels MUST be
adjusted evenly on both sides to avoid injury.
Figure 9
Figure 10
Figure 11
Figure 12
Extend both
sides up to 3
inches.
Locking Nut
and Bolt
Arm Rest
Adjustment
Hand Knob
Adjustment
Screw
Wheel Base
Locking Pin
U- Shaped
pins
