ADJUSTMENTS
Tiller Angle Adjustment (For XtraLite 4
& Sunrunner S ONLY) (Fig. 5)
On the left hand side at the base of the tiller
is a red lever. Push the lever in to release
the pin and select the required tiller angle.
Refit the pin into one of the five location
holes.
Folding the Tiller (For XtraLite 3 &
Scootie ONLY) (Fig. 6)
Fold down the tiller by loosening the hand
knob located at the base of the tiller stem.
Seat Slide & Swivel Adjustment (For
Sunrunner S ONLY) (Fig. 7)
Pulling up on the lever allows the seat
position to be adjusted forward or backward.
Release the lever and the seat will lock in
that position. Under the right side of the
seat there is a spring loaded red lever.
Pulling up on the lever allows the seat to
swivel, when released the seat will lock into
one of 4 positions.
Seat Removal (Fig. 8)
Fold down the back of the seat. Remove the
seat hand knob and locking pin that secures
the seat adaptor. Lift the seat adaptor out of
the seat post.
Seat Height Adjustment (Fig. 8)
Remove seat as described above. Loosen
the lower hand knob. The seat height can be
adjusted to 5 different settings by inserting
the steel locking pin in the required hole.
Retighten the lower hand knob and replace
the seat.
Do not use the scooter without the arms
being fitted.

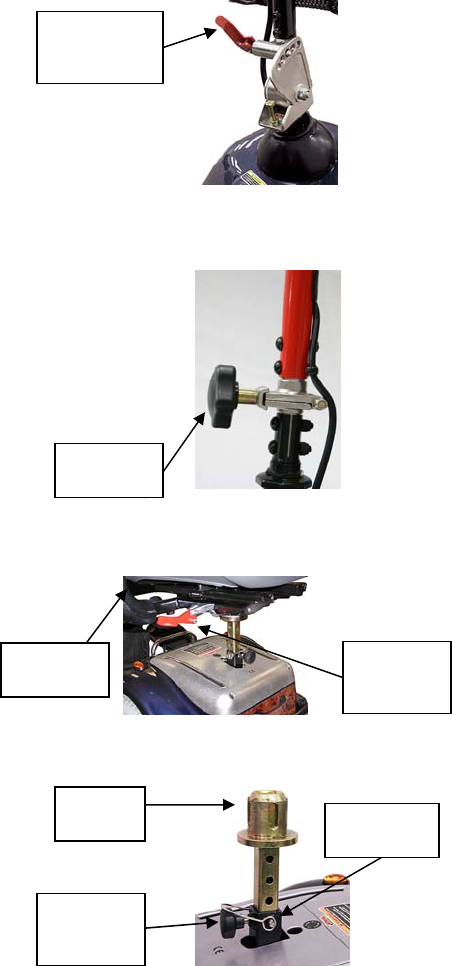

Figure 5
Figure 7
Figure 8
Figure 6
Seat
Tightening
Hand Knob
Swivel Seat
Adjustment
Lever
Tiller Hand
Knob
Seat
Locking Pin
Tiller Angle
Adjustment
Lever
Seat Slide
Lever
Seat
Adaptor
