7FT-857 Operating Manual
INSTALLATION
INSTALLING THE MICROPHONE AND FRONT PANEL

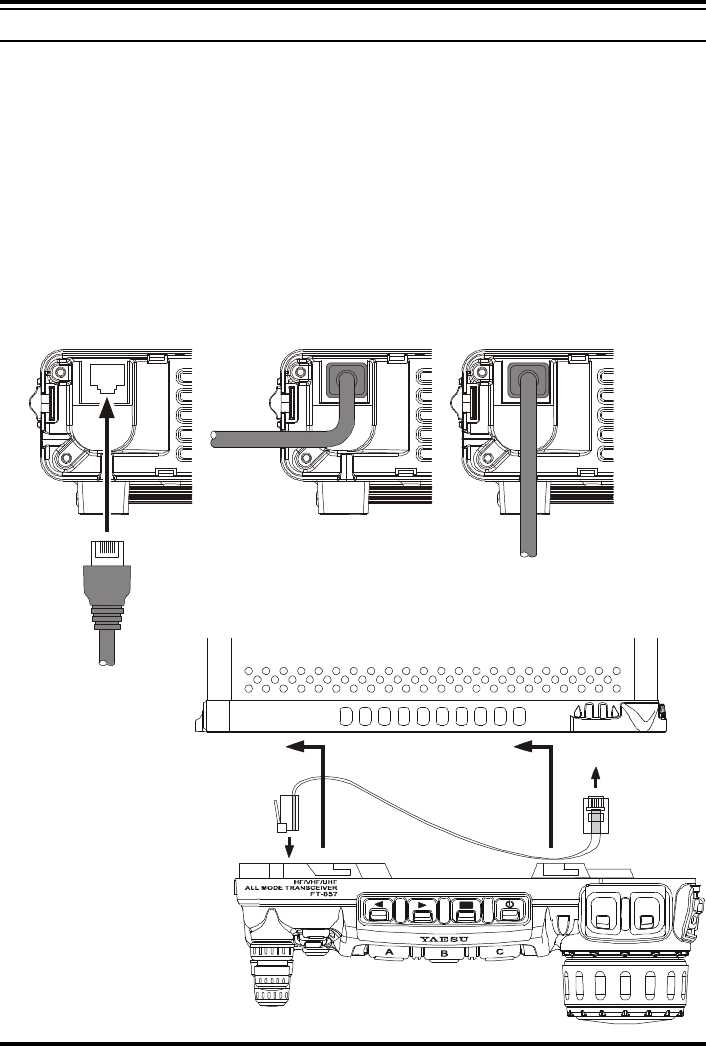

1. Insert the microphone’s plug into the recessed jack on the transceiver, as shown in the
illustration.
2. You may position the microphone cable so as to cause it to exit from the side or the
bottom of the transceiver. Just route the cable into the appropriate channel provided, as
shown in the illustration.
3. Connect the Control cable between the Front Panel and Transceiver Body.
4. Install the Front Panel by sliding it into the position shown; you will hear a “click” when
the panel locks into place.
5. To remove the Front Panel, use your left thumb to push rearward (slightly) the latch on
the left-hand of the panel, then slide the Front Panel to the right and away from the
transceiver.
BAND
DWN UP
TX/BUSY
DSP
MODE
