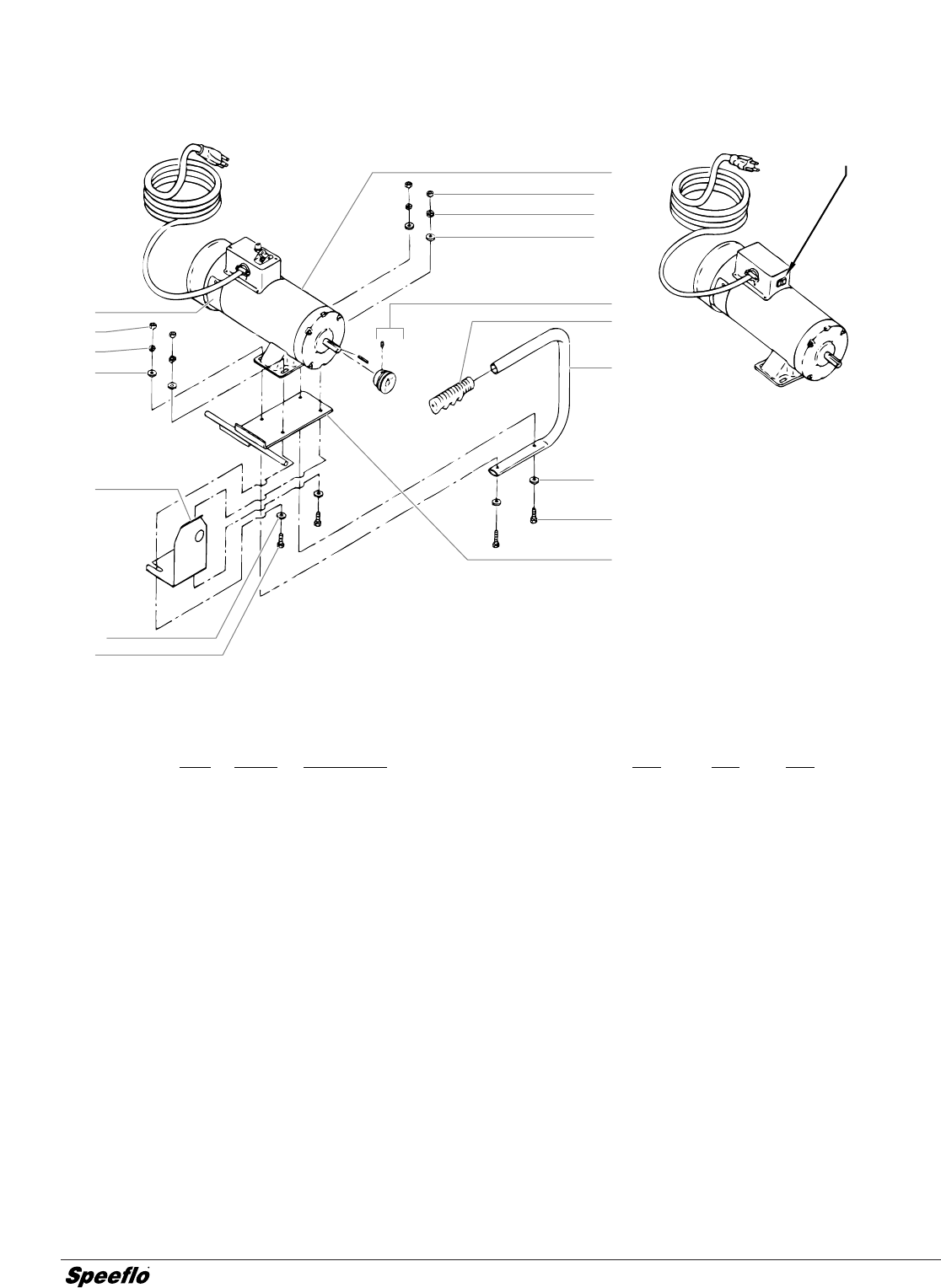

DC — Electric Convertokits
506-217 506-204 506-214
115V CSA, 115V 220V
Item
Part # Description Qty. Qty. Qty.
1 506-259 Cover ......................................................................1 ................1 ...............1
2 860-501 Nut stop ..................................................................4 ................4 ...............4
3 860-002 Lock washer............................................................4 ................4 ...............4
4 860-004 Flat washer .............................................................8 ................8 ...............8
5 449-192 Motor shaft shield......................................................................1
6 860-535 Screw......................................................................2 ................2 ...............2
7 978-350 Motor, DC-Electric, 2 HP, 50 / 60 Hz, 115 V...........1
978-384 Motor, DC-Electric, 2 HP, 50 / 60 Hz, 115 V
CSA approved ...........................................................................1
978-351 Motor, DC-Electric, 2 HP, 50 / 60 Hz, 220 V...............................................1
8 977-227 Pulley ......................................................................1..................................1
Pulley.........................................................................................1
9 590-068 Handle grip .............................................................1 ................1 ...............1
10 335-017 Handle ....................................................................1 ................1 ...............1
11 860-552 Screw......................................................................2 ................2 ...............2
12 448-337 Mount plate.............................................................1................1...............1
13 506-258 Fan (not shown)......................................................1 ................1 ...............1
14 424-285 Belt (not shown)......................................................*.................*................*
15 747-951 Decal identification kit (French, not shown) ..............................1
*Not part of this assembly
CSA Approved Motor
ON/OFF switch is also
circuit breaker reset
1
2
3
5
4
6
4
7
2
3
4
9
12
10
11
4
8
