PARTS REPLACEMENT
– 30 –
4
5
7
1
2
6
3
5
1
2
3
4

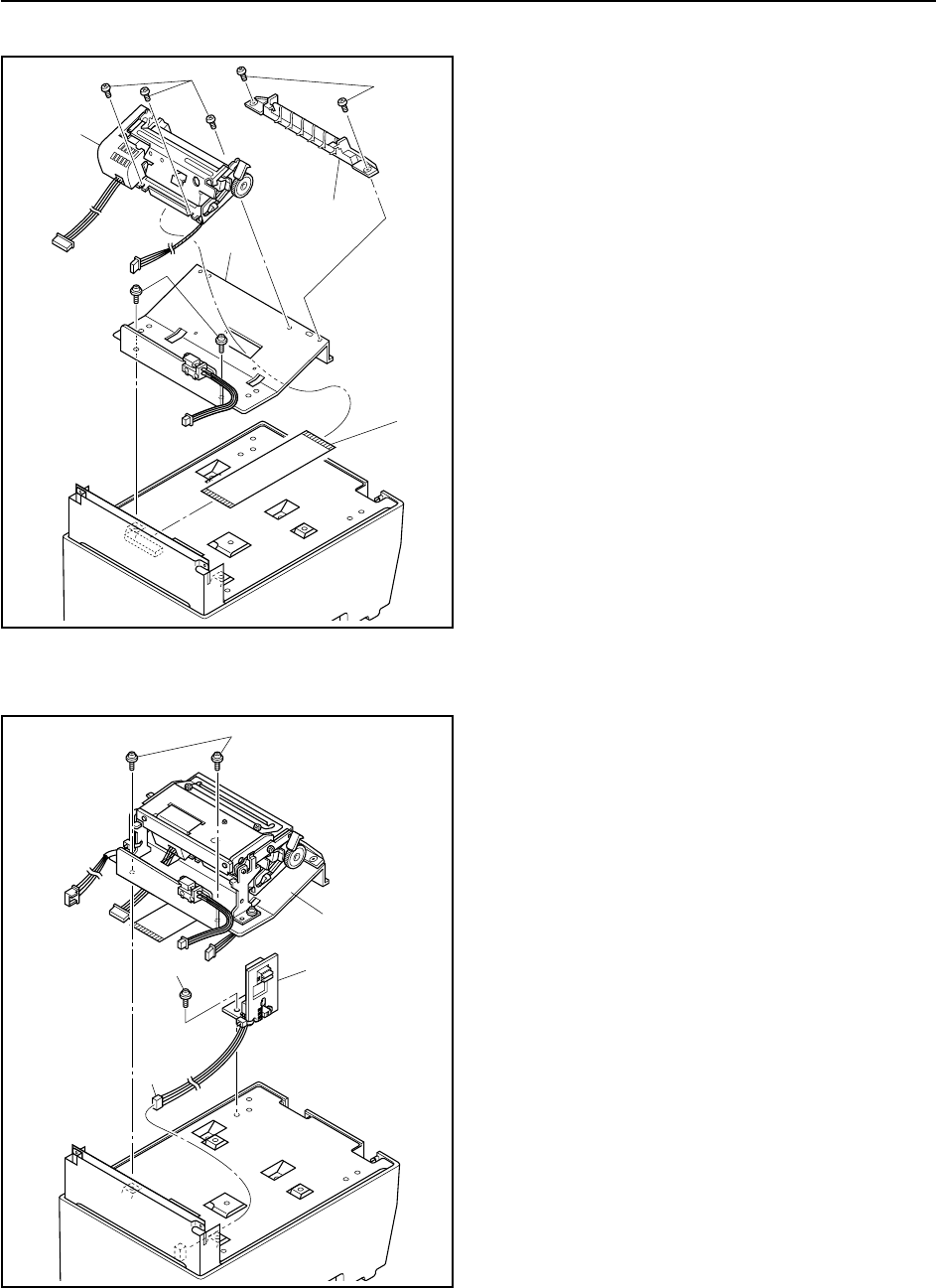

3. Printer Mechanism
<TSP212-24/120/230>
(1) Remove the upper case unit (see 1. above), then
proceed to (2) below.
<TSP242-24/120/230>
(1) Remove the auto-cutter unit. (See 2. above.)
(2) Remove:
Two screws 1
Sub-chassis 2
Guide 3
Two tapping screws 4
Three tapping screws 5
Flat cable 6
Connector
Printer mechanism 7
4. Near-End-Sensor Unit
(1) Remove the upper case unit. (See 1. above.)
(2) Remove:
Two screws 1
Mechanism sub-chassis 2
One tapping screw 3
Connectors 4
Near-end-sensor unit 5
