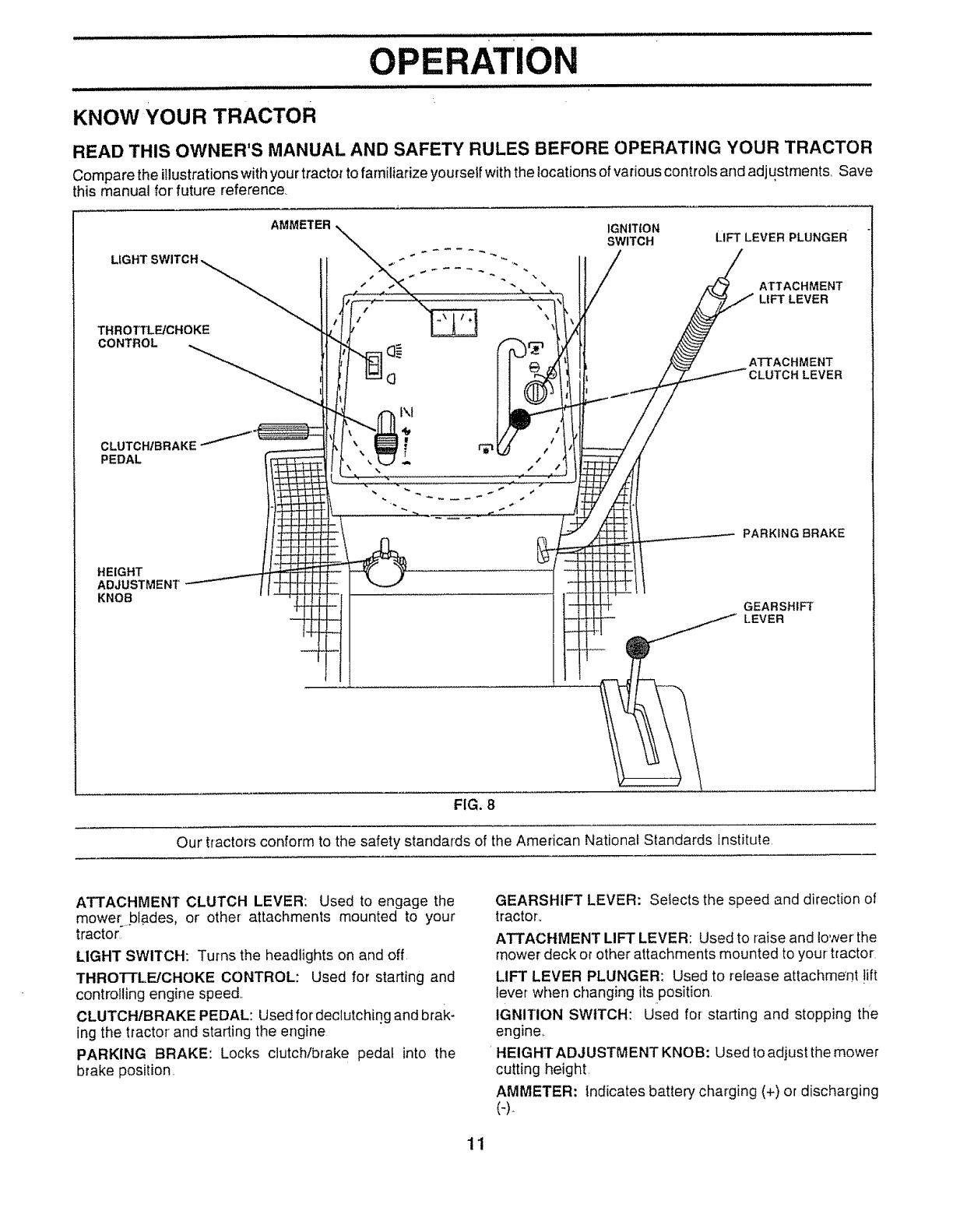

OPERATION
KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR
Compare the illustrationswithyourtractor to familiarize yourself with the locationsof various controls and adjustments_ Save
this manual for' future reference,
THROTTLF-JCHOKE
CONTROL
CLUTCWBRAKE
PEDAL
AMMETER \ \
/
/
/
IGNITION
SWITCH
LIFT LEVER PLUNGER
ATTACHMENT
LIFT LEVER
AI-rACHMENT
PARKING BRAKE
HEIGHT
ADJUSTMENT
KNOB
GEARSHIFT
LEVER
FIG. 8
Our tractorsconform to the safety standards of the American National Standards Institute,
ATTACHMENT CLUTCH LEVER: Used to engage the
mower blades or other attachments mounted to your
tractor
LIGHT SWITCH: Turns the headlights on and off
THROTTLE/CHOKE CONTROL: Used for starting and
controlling engine speed,.
CLUTCH/BRAKE PEDAL: Used for declutching and brak-
ing the tractor and starting the engine
PARKING BRAKE: Locks clutch/brake pedal into the
brake position.
GEARSHIFT LEVER: Selects the speed and direction of
tractor°
ATTACHMENT LIFT LEVER: Used to raise and lower the
mower deck or other attachments mounted to your tractor-,
LIFT LEVER PLUNGER: Used to release attachme'nt !ift
lever when changing its position.
IGNITION SWITCH: Used for starting and stopping the
engine,.
HEIGHT ADJUSTMENT KNOB: Used to adjust themower
cutting height.
AMMETER: Indicates battery charging (+) or discharging
(h.
11
