3 Install Wall Plate Covers & Cable Management Assembly

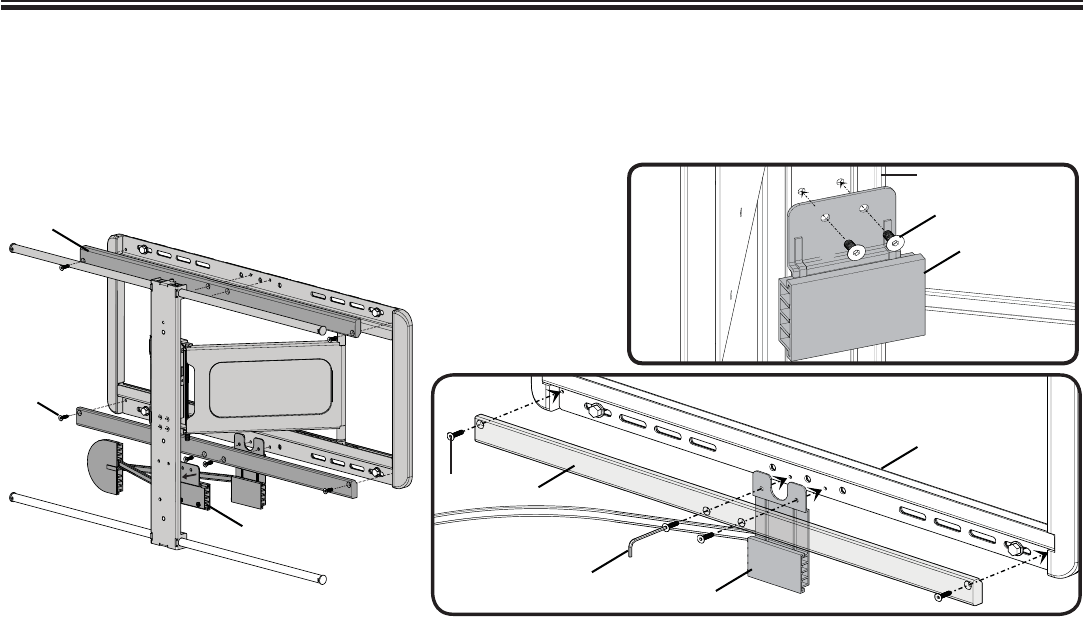

Mount the upper cover [25] using the ⁄ in. hex key [21] and four screws [20].
Place the rear plate of the cable management assembly [26] over the two smallest holes in the bottom of the wall plate [01].
Use the ⁄ in. hex key [21] and four screws [20] to secure the lower wall plate cover [25] and the cable management assembly [26]
to the wall plate.
Use two screws [19] to secure the front plate of the cable management assembly [26] to the inside of the TV interface [01].
[25]
[20]
[19]
[26]
[01]
[26]
[21]
[20]
[01]
[25]
[26]
