Chapter 3: Installation 11
Chapter 3: Installation
This chapter describes how to install the ST60 Depth instrument, and associated
depth transducer. The transducer is fitted in the hull of the vessel and is connected
to the rear of the instrument. The actual type of transducer depends on the type of
hull in which it is to be installed.
For advice, or further information regarding the installation of this equipment,
please contact the Raymarine Product Support Department or your own National
Distributor.
3.1 Planning your installation
Before starting the installation, spend some time considering the best positions
for both transducer and instrument, such that the
Site Requirements
and the
EMC installation guidelines
(below) are satisfied.
Site requirements

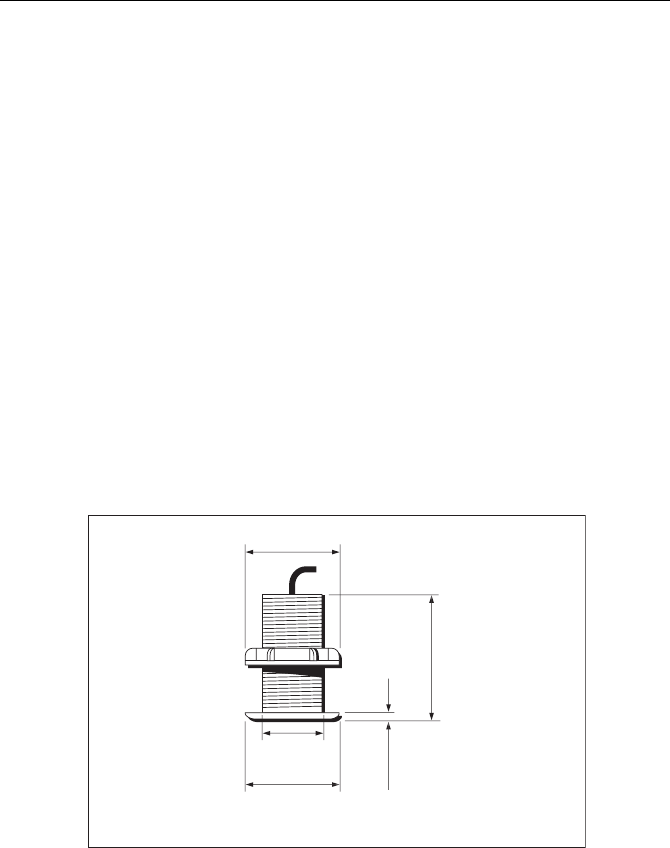

Transducer
2.94 in (75 mm)
diameter
0.19 in (5 mm)
2.94 in (75 mm )
diameter
2.00 in (51 mm)
diameter
3.50 in (89 mm)
D4445-3
Depth transducer dimensions
