2.7.2 Parallel Connection of the Extensions

Any SLT can be connected in parallel with an APT or a DPT as follows.

Note

In addition to

an SLT, an answering machine, a fax machine or a modem (PC) can be connected in parallel

with an APT or a DPT.

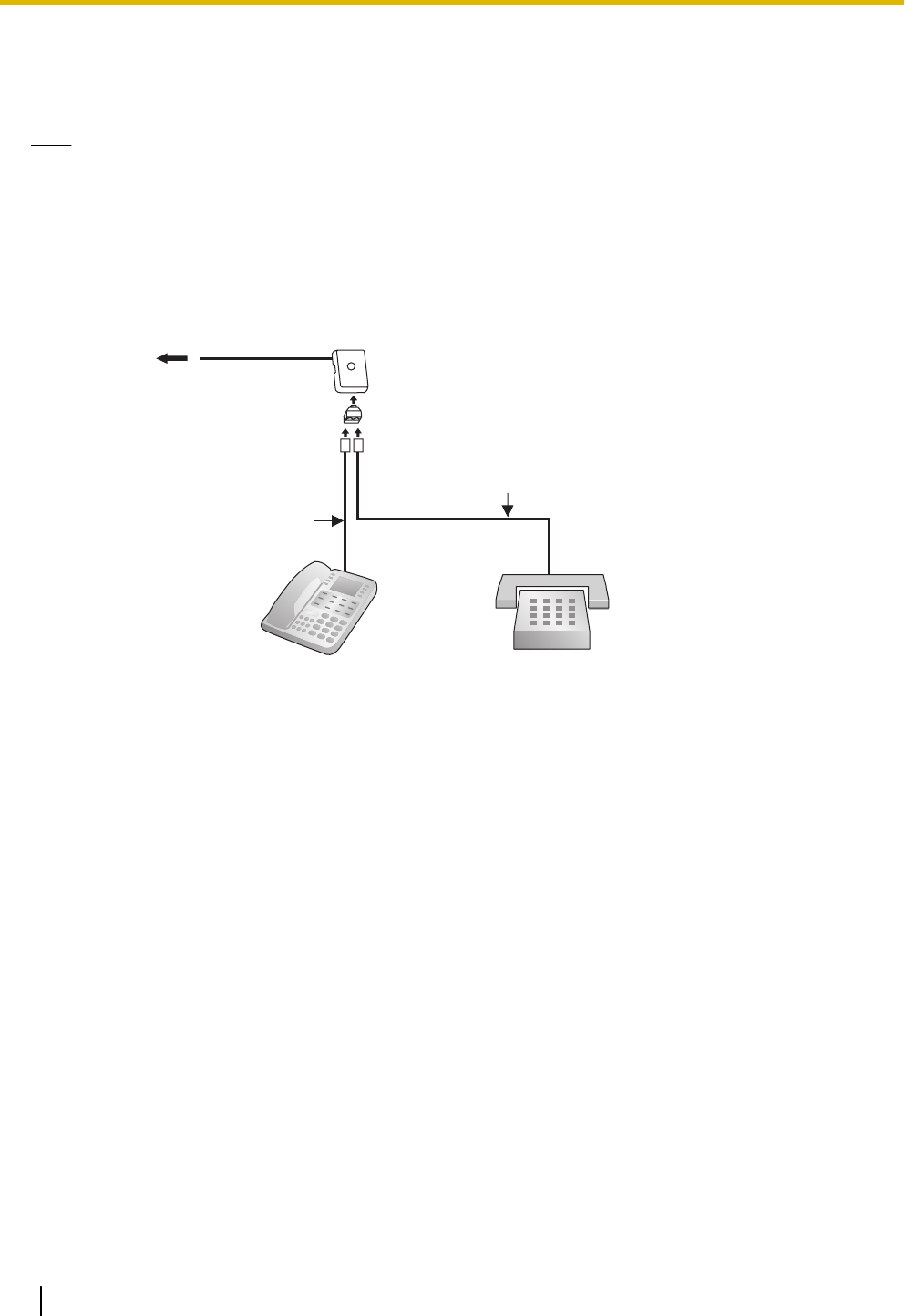

With APT

For parallel connection, eXtra Device Port (XDP) mode must be disabled for that port through system

programming. Refer to "1.11.9 Parallelled Telephone" and "2.1.1 Extension Port Configuration" in the Feature

Guide for further information.

To DHLC8 card

4-conductor wiring cord

Connect pins "T", "R", "D1",

and "D2".

2-conductor wiring cord

Connect pins "T" and "R".

SLTAPT

Modular

T-Adaptor

With DPT

Parallel mode or eXtra Device Port (XDP) mode can be selected through system programming.

If XDP mode is enabled through system programming, parallel connection is not possible. Refer

to "1.11.9 Parallelled Telephone" and "2.1.1 Extension Port Configuration" in the Feature Guide for further

information.
