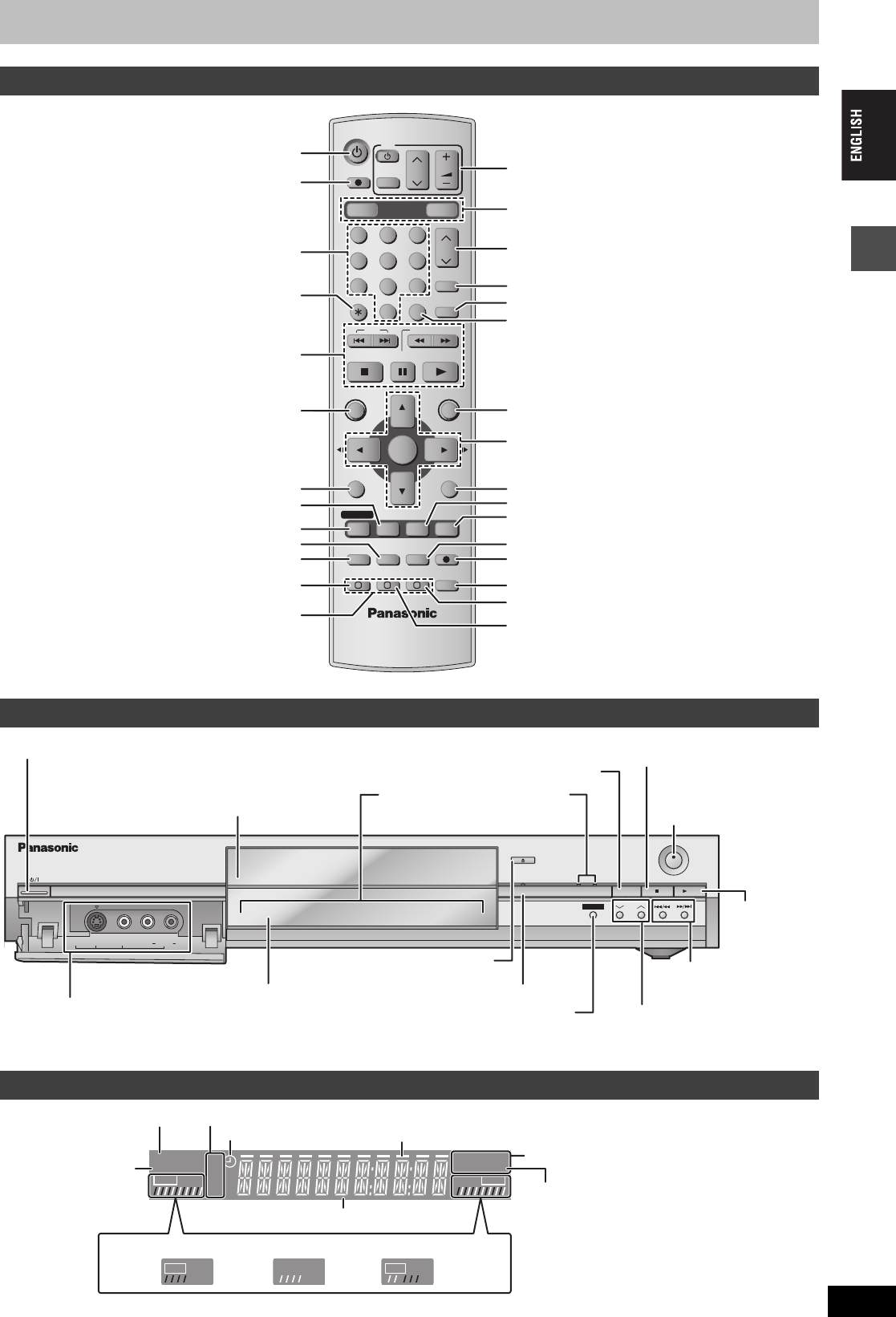

Control reference guide
Rear panel terminals (➡page 7, 8)
Remote control
VOLUME
CH
DIRECT TV REC
DVD
TV
AV
123
456
78
0
9
MANUAL SKIP
ShowView
CH
CANCEL
INPUT SELECT
SKIP
STOP
PAU SE
PLAY/x1.3
SLOW/SEARCH
FUNCTIONS
ENTER
DIRECT NAVIGATOR
TOP MENU
RETURN
SUB MENU
CREATE
CHAPTER
TIMER
EXT LINK
PROG/CHECK
REC MODEERASE
REC
AUDIO
TIME SLIP
STATUS
DISPLAY
F
A B C
DUBBING
HDD DVD
DRIVE SELECT
Turn the unit on (➡page 10, 11)
Direct TV recording (➡page 17)
Select channels and title numbers etc./
Enter numbers
Cancel
Basic operations for recording and play
Show Top menu/Direct Navigator (➡page 22, 28)
Show on-screen menu (➡page 26)
Show timer recording programme screen
(➡page 20)
Erase items (➡page 24)
Programme recording standby/release
(➡page 19, 20)
Show sub menu (➡page 28)
Linked timer recordings with external equipment
(➡page 21)
Manual tuning operation (➡page 42)
Television operations (➡page 13)
Channel select (➡page 16)
Show S
HOWVIEW screen (➡page 19)
Skip 30 seconds forward (➡page 23)
Show FUNCTIONS window (➡page 36)
Selection/Enter, Frame-by-frame (➡page 10, 23)
Return to previous screen
Show status messages (➡page 27)
Skip the specified time/Display the television image
as a picture-in-picture (➡page 17, 23)
Start recording (➡page 16)
Select audio (➡page 24)
Create chapter (➡page 24)
Change recording mode (➡page 16)
Input select (AV1, AV2, AV3 or AV4) (➡page 18)
Select drive (➡page 16, 22)
One touch transfer (dubbing) (➡page 34)
Main unit
PULL OPEN
OPEN/CLOSE
REC
/
x
1.3
TIME SLIP
CH
AV3
S-VIDEO IN VIDEO IN AUDIO IN
R
L/MONO
TIME SLIP
DRIVE SELECT
HDD DVD
HDD DVD
Connection for camcorder etc.
(➡page 18)
Skip the specified time/Display the television image as a
picture-in-picture (➡page 17, 23)
Disc tray (➡page 16, 22)
Start recording (➡page 16)
Remote control signal sensor
Standby/on switch (
/I) (➡page 10, 11)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.
Display (➡below)
Stop (➡page 16, 23)
Open/close disc tray (➡page 16, 22)
Time Slip indicator (➡page 17)
Start play
(➡page 22)
Lights when the HDD or DVD
drive is selected
Select drive (➡page 16, 22)
Channel select (➡page 16)
Skip/Slow/Search
(➡page 23)
The unit’s display
HDD
EXT
Link
XP
SP
LP
EP
REC
PLAY
DVD
VCD
.MIX
R
-
AM
REC
PLAY
Recording mode
Timer recording indicator
Main display section
D.MIX (multi-channel DVD-Audio only)
When lit: down-mixed audio is played.
When off: the disc prevents down-mixing so on
the two front channels can be played.
Linked timer recordings
with external equipment
indicator
Disc type
Recording Playback Recording/Playback
HDD indicator
Transferring (dubbing) in progress indicator
e.g.,
[HDD]
