Installation and Removal of FR-PU07
For FR-E700

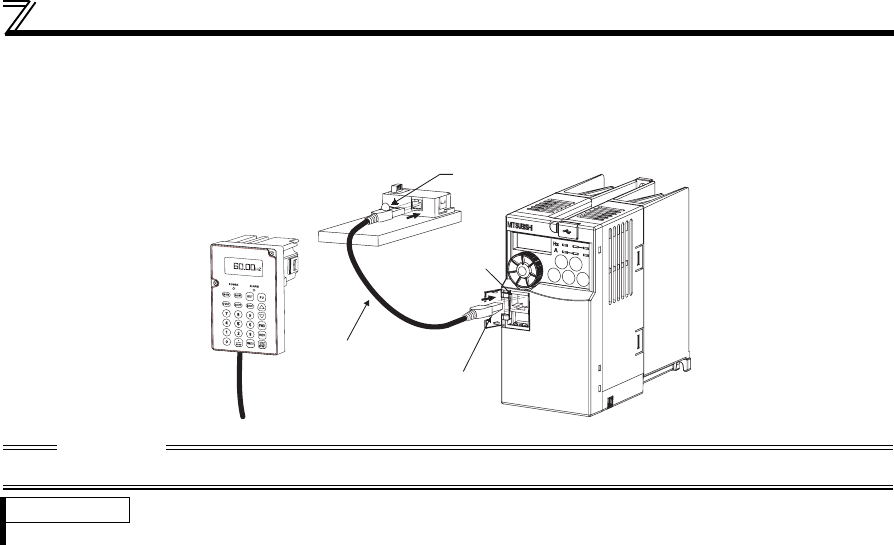

(1) Open the PU connector cover.
(2) Securely insert one end of connection cable into the PU connector of the inverter and the other
end into the connection connector of FR-PU07 along the guides until the stoppers are fixed.
CAUTION
Do not connect the connection cable when the front cover is removed.
REMARKS
For details of the connection cable (FR-CB2), refer to the connection cable (FR-CB2) instruction manual.
Stopper
FR-PU07
PU connector
Stopper
STF FWD PU
Connection cable
