with the connector on the system board and press down on the assembly until it
is seated firmly into the connector on the system board.

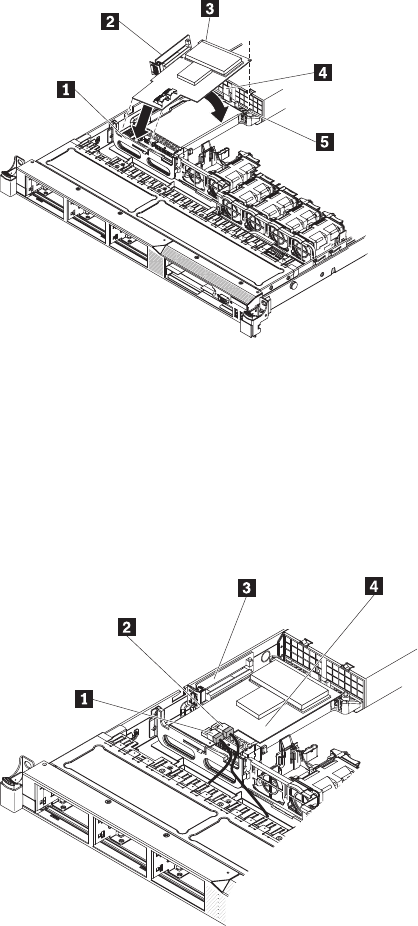

1 SAS/SATA RAID front retention bracket
2 SAS/SATA RAID riser card
3 ServeRAID-MR10i adapter
4 Plastic tab
5 Alignment post
8. Route the signal cables from the drive backplane over the blue adapter
retention bracket as shown in the following illustration.
1 Connector for drive bays 0-3 signal cable
2 Connector for drive bays 4-5 signal cable
3 SAS/SATA RAID riser card
4 ServeRAID-MR10i controller
9. Take the signal cable that is attached to the drive backplane for drive bays 4
and 5 and connect it to the RAID controller connector that is closest to the
power supply cage. Connect the other signal cable so that is attached to the
drive backplane for drive bays 0 through 3 and connect it to the other connector
on the controller. The following illustration show how to route the signal cables.
Note:
When you restart the server, you will be prompted to import the existing
RAID configuration to the new RAID controller.
