4. BASIC ADJUSTMENTS BEFORE USE (Be sure)
MONITOR ADJUSTMENT

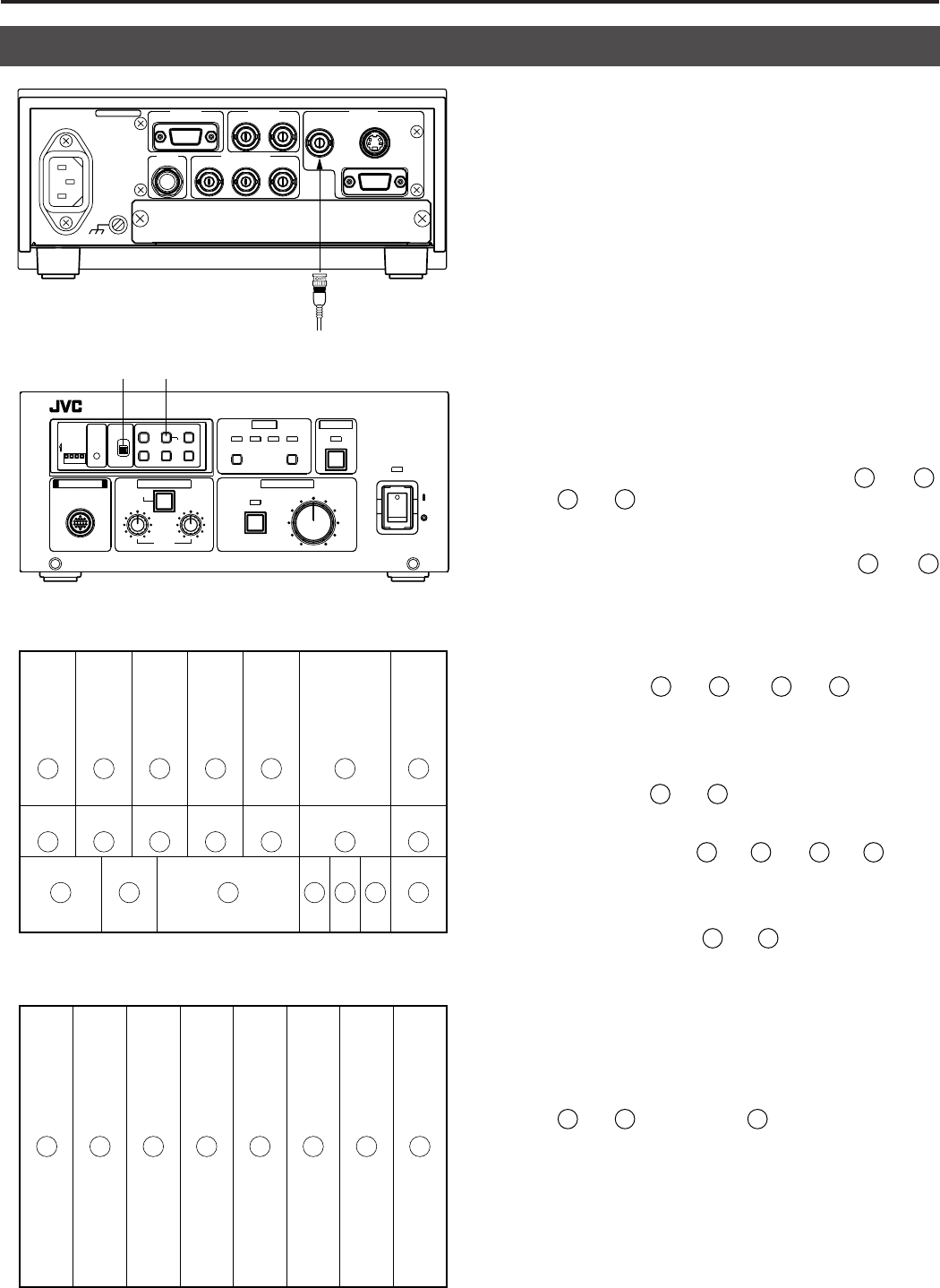

Perform the adjustments for color, contrast and luminance by
displaying the color bar signal built into the KY-F58 on the moni-
tor.
1.
Connect a color video monitor to the VIDEO OUPUT termi-
nal of the KY-F58.
2.
Open the cover and switch the Lock switch to OFF.
3.
Press the “ITEM+” button to output the color bar signal (the
color bar conforms to the SMPTE [U Ver.] or EBU [E Ver.] )
4.
While displaying the color bar, set the BLUE CHECK of the
monitor to “ON”.
The screen becomes blue only mode and color bar becomes
blue stripe pattern.
5.
[U Ver.]
Turn the CHROMA adjustment volume on the monitor to
adjust the color bar so that the brightness of
1
and
8
,
and
7
and
14
become the same.
[E Ver.]
Turn the CHROMA adjustment volume on the monitor to
adjust the color bar so that the brightness of
1
and
7
become the same.
6.
[U Ver.]
While the BLUE CHECK is ON, turn the PHASE adjust-
ment volume of the monitor to adjust the color bar, so that
the brightness of
3
and
10
, and
5
and
12
become the
same.
[E Ver.]
While the BLUE CHECK is ON, turn the PHASE adjust-
ment volume of the monitor to adjust the color bar, so that
the brightness of
3
and
5
become the same.
7.
[U Ver.]
In case the brightness of
1
and
8
, and
7
and
14
change
when carrying out the PHASE adjustment, start the proce-
dure again from step
4
.
[E Ver.]
In case the brightness of
1
and
7
change when carrying
out the PHASE adjustment, start the procedure again from
step
4 .
8.
Set the BLUE CHECK of the monitor to OFF to return to the
normal screen (to display all colors, R, G and B).
9.
[U Ver.] only
Adjust the BRIGHT adjustment volume of the monitor, so
that
18
and
19
disappear and
20
becomes visible.
10
.
When the adjustment is completed, press the “ITEM+” but-
ton again to return to the normal screen.
