E-8

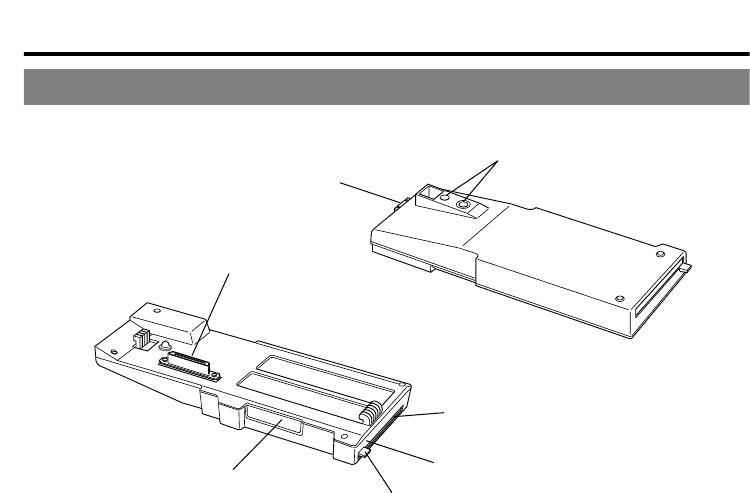

Controls, Connectors and Indicators
1 Camera connection terminal
To connect the DV camcorder (GY-
DV300).
( See E-9 How to Attach)
2 PC card slot
To insert a LAN card, Compact Flash
card, etc.
3 Access lamp
This lamp lights when the card is in use.
4 Guard
Guard to prevent the card from being
inadvertently ejected.
5 Service terminal.
Do not use this terminal.
6 Camera mounting screw holes (
1
/4 inch)
Used to mount the KA-DV300 and the GY -
DV300 on a camera tripod.
7 Release button
Press this button to release the KA-DV300
from the GY-DV300.
1
2
3
4
5
7
6
