Deck framing
Minimum 1-2in.
clearance from
highest point of
decking
Ledger
HardiePlank
lap siding
Z-ashing with
vertical element
high enough for
clearance
Water-resistive
barrier
Wall sheathing
Starter strip

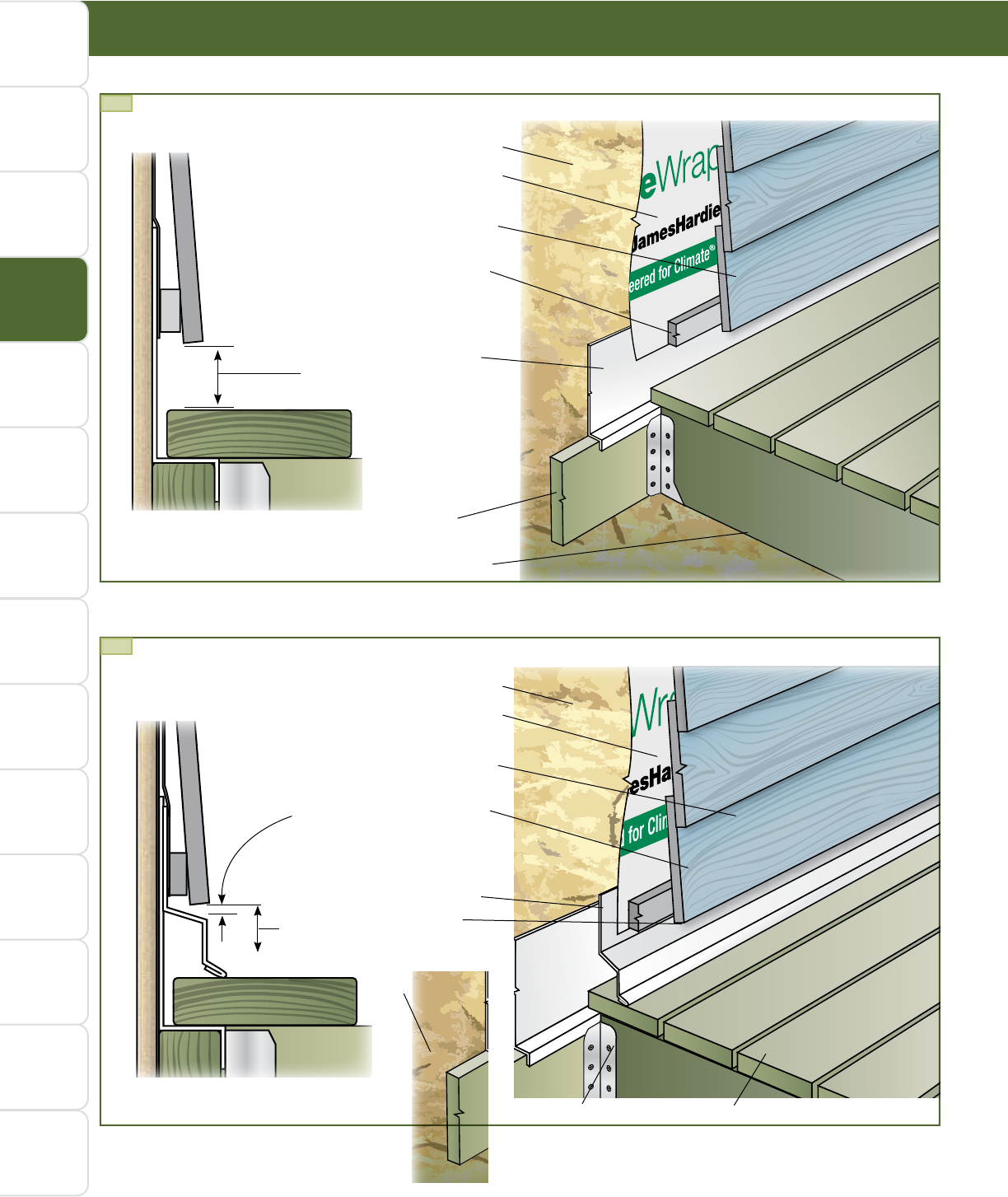

Wall to deck intersection without decorative counter flashing
Optional decorative
counter ashing
Wall to deck intersection with decorative counter flashing
HardiePlank
®
lap siding
Z-ashing with
vertical element
high enough for
clearance
Water-resistive
barrier
Wall sheathing
Starter strip
Flashing
Deck framing
Ledger
1
/4-in. gap
between ashing
and siding
Minimum 1-2in.
clearance from
highest point of
decking
4.37
4.38
General Installation Requirements (continued)
