OPTIONAL INSTALLATIONS
■ TV-R7100
TV RECEIVE ADAPTER

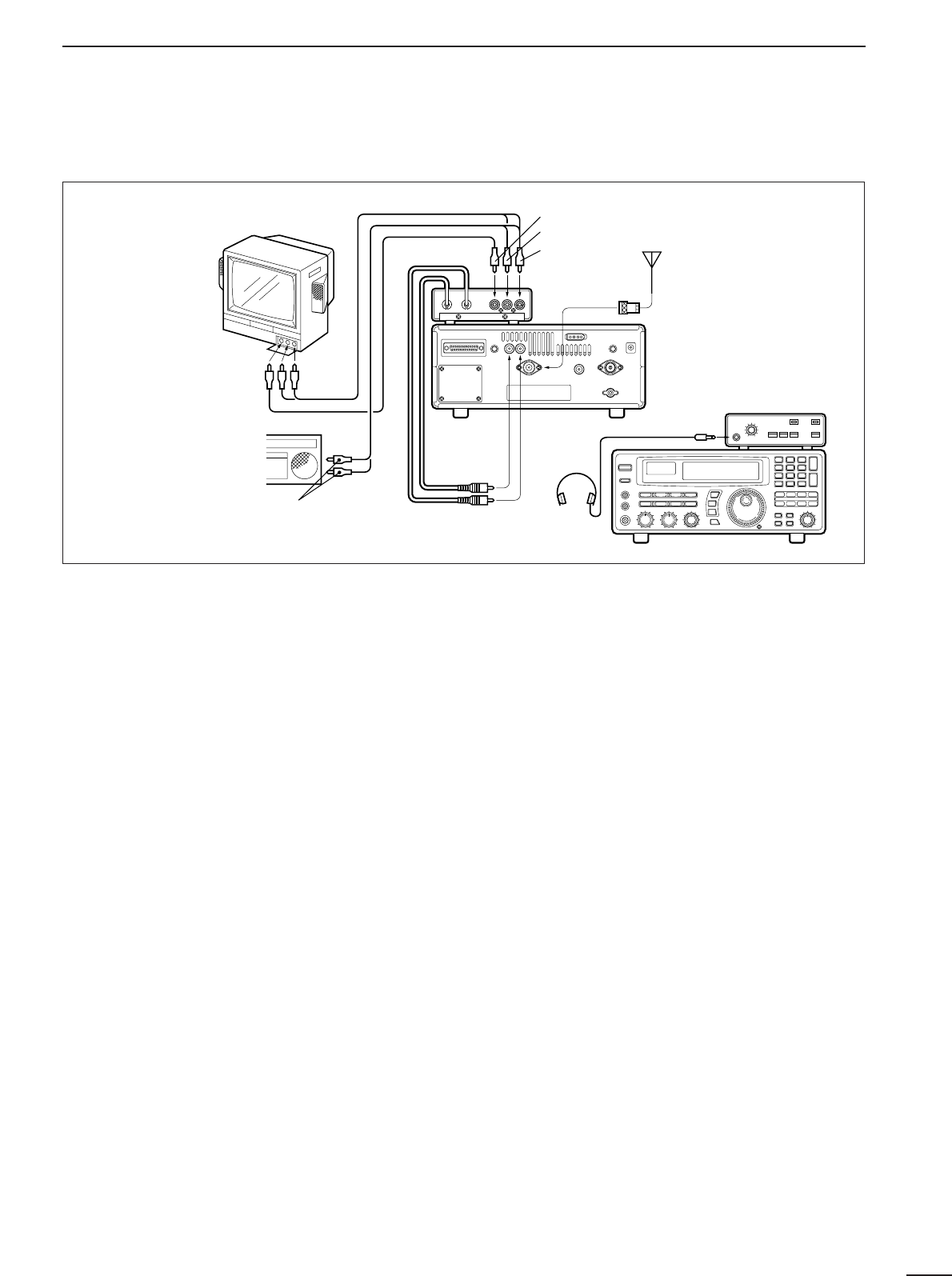

DConnections
DOperation
➀Turn on the TV-R7100, IC-R8500 and all connected
equipment.
➁Select WFM mode.
➂➥Push OUT [FM/TV] on the TV-R7100 to select
“TV” when receiving TV broadcasts or ATV.
➥Push IN [FM/TV] on the TV-R7100 to select “FM”
when receiving FM broadcasts in stereo.
➃Set the frequency of the audio center frequency of
the desired TV or FM signals by the main dial or di-
rect keypad entry.
•The FM center indicator on the IC-R8500’s function dis-
play is useful for tuning.
•Pictures appear on your TV screen and sound is emitted.
DTV-R7100 specifications
General
•Power supply requirement:9 V negative ground
(supplied from the IC-
R8500)
•Current drain:Approx. 100 mA
(when receiving no sig-
nal)
•Dimensions:110(W)×35(H)×200(D) mm;
4.3(W)×1.4(H)×7.9(D) in
(projections not included)
•Weight:750 g; 1.7 lb
•Headphone jack impedance:32 Ω (approx.)
TV receiver
•Video carrier input frequency:15.2 MHz
(U.S.A. ver-
sion)
16.2 MHz
(Europe ver-
sion)
•Audio carrier input frequency:10.7 MHz
•Audio intermediate frequency:4.5 MHz
(U.S.A. version)
5.5 MHz
(Europe version)
•Video output level:1 V p-p (75 Ω)
•Audio output level:300 mVrms/47 kΩ load
(U.S.A. version)
400 mVrms/47 kΩ load
(
Europe
version
)
FM receiver
•Intermediate frequency:10.7 MHz
•Selectivity:230 kHz/–6 dB
•Audio output level:300 mV/47 kΩ
•Stereo separation:More than 30 dB (1 kHz)
