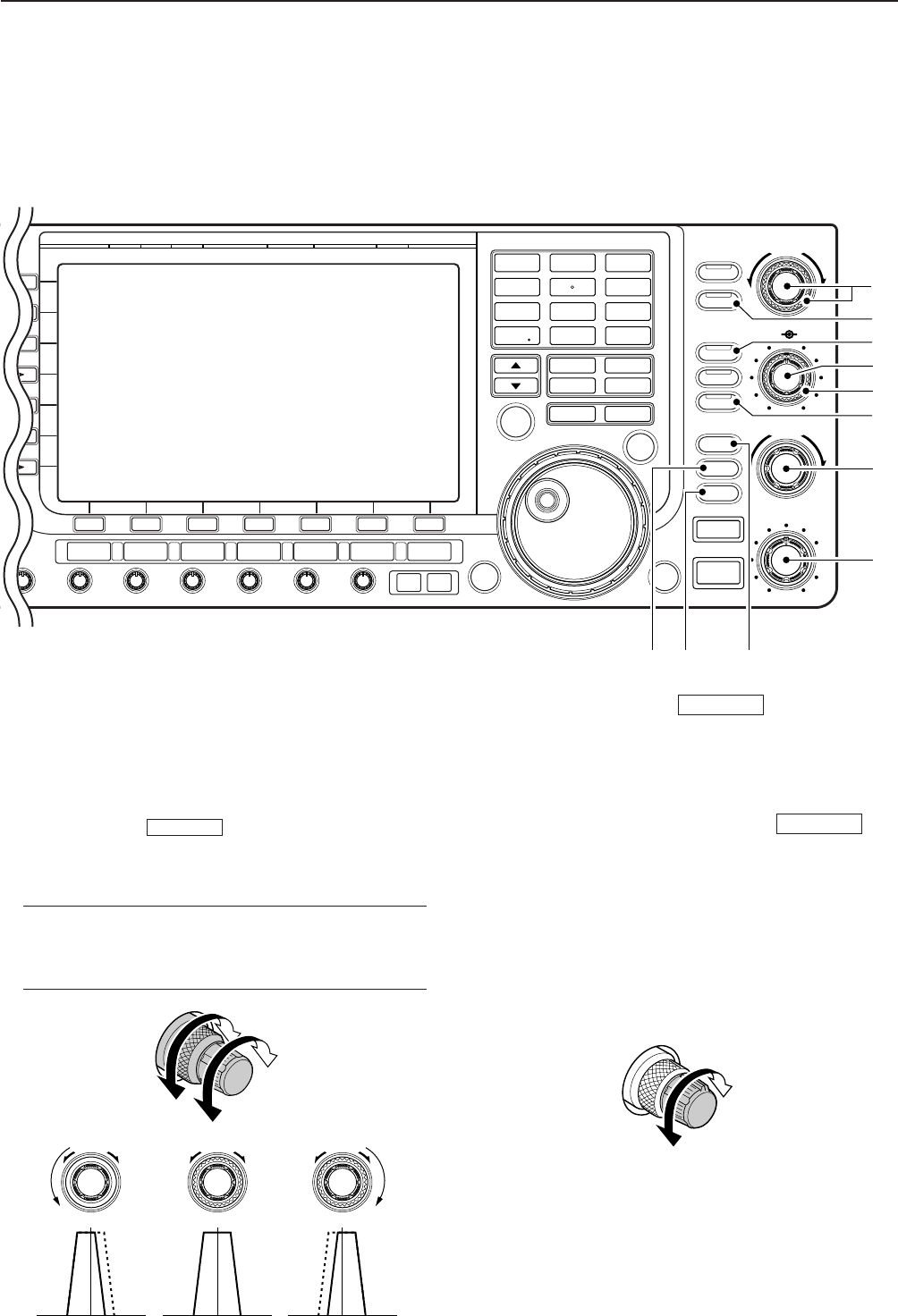

^1 PASSBAND TUNING CONTROLS [TWIN-PBT]
(p. 5-12)
Adjusts the receiver’s IF filter “passband width” via
the DSP.
• Passband width and shift frequency are displayed in the
multi-function display.
• Push and hold for 1 sec. to clear the PBT
settings.
• Adjustment range is set to half of the IF filter passband
width. 25 Hz steps and 50 Hz steps are available.
✔
What is the PBT control?
The PBT function electronically modifies the IF passband
width to reject interference. This transceiver uses the
DSP circuit for the PBT function.
^2 PBT CLEAR SWITCH (p. 5-12)
Clears the PBT settings when pushed and held for
1 sec.
• The [PBT-CLR] indicator above this switch lights when
PBT is in use.
^3 DIGITAL RF SELECTOR SWITCH
(p. 5-18)
Turns the digital RF preselector ON and OFF.
• The [DIGI-SEL] indicator lights green when the prese-
lector is in use.
^4 DIGITAL RF SELECTOR CONTROL [DIGI-SEL]
(p. 5-18)
Adjusts the digital RF selector center frequency.
• The control can be reassigned as the audio peak filter
adjustment (p. 12-16)
