Type II stage
Movable range of the Tilt axis with respect to Z values st Standard specimen height by specimen
size (when an optional detector is not used)
• Restrictions on positive angles of tilt

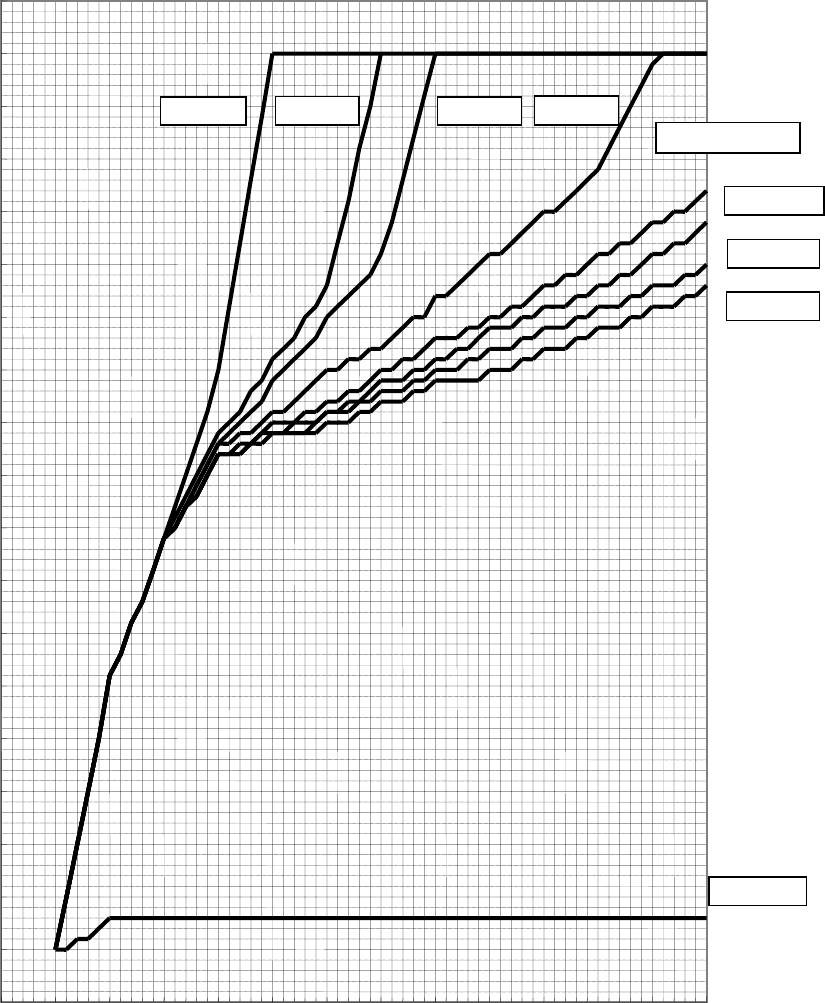

Fig. 3.5-66 Tiltable Angles with respect to Z-axis Positions (Type II)
(positive angles of tilt)
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
0 5 10 15 20 25 30 35 40 45 50 55 60 65
Z [mm]
T [deg]
∅15 mm
∅26 mm
∅32 mm
∅51 mm
∅77, ∅85 mm
∅102 mm
∅127 mm
∅153 mm
∅200 mm
