Removal and replacement procedures 71
Device number Connector
System fan 4 J11 on the personality board
A new system fan can be installed to allow the server to operate properly in case a default system fan
becomes defective.
To remove the system fan:
1. Power down the server.
2. Disconnect the power cord(s).
3. Unlock the server if necessary and remove the top cover as described in the section System
cover.
4. Disconnect the system fan cable from its corresponding board connector.
5. Squeeze the release tab on the system fan to release it from the chassis.
6. Lift the system fan away from the chassis.

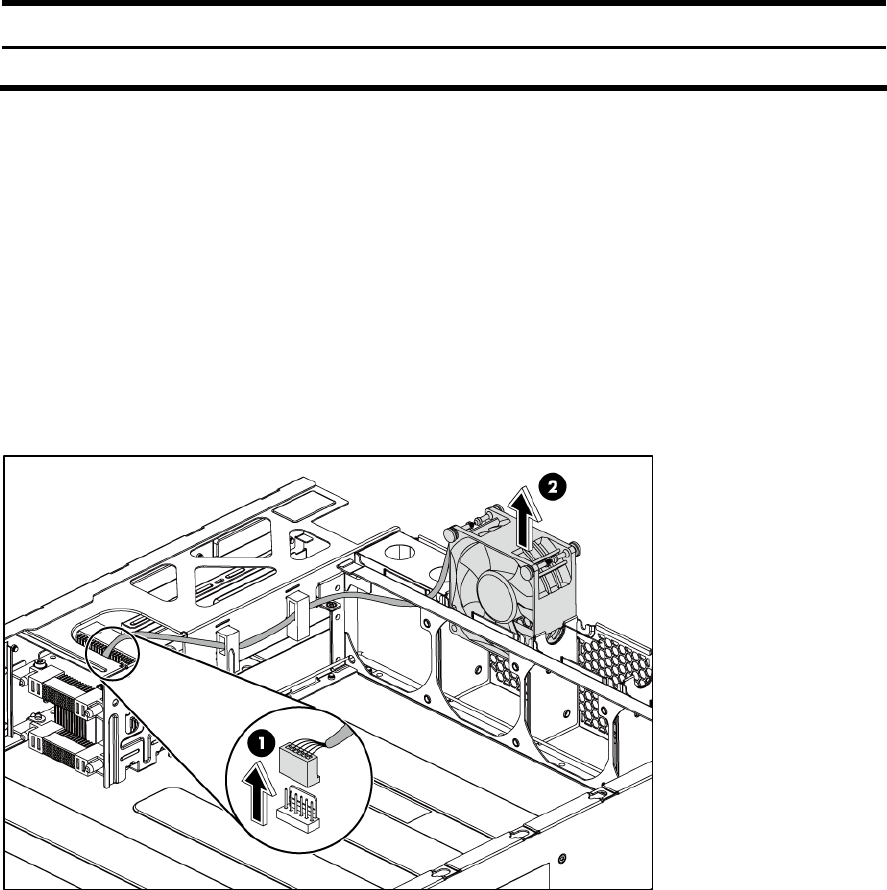

Figure 66 Removing the System Fan
