Programming Guide – 24
3. Press the GPIB ADDR key. The new address is activated and stored. To leave the GPIB
address unchanged, press the Driver 1 key.
GPIB Interface Functions
The GPIB interface functions are listed in Table 7.
Table 7: GPIB Interface Functions
Mnemonic Function
SH1 source handshake, complete capability
AH1 acceptor handshake, complete capability
T6 basic talker, serial poll, not addressed if MLA
L4 basic listener, not addressed if MTA
SR1 service request capability
RL1 remote/local, complete capability
PP0 parallel poll, no capability
DC1 device clear, complete capability
DT0 device trigger, no capability
C0 controller, no capability
E1 electrical interface, open collector drivers
RS232
Pin Assignment

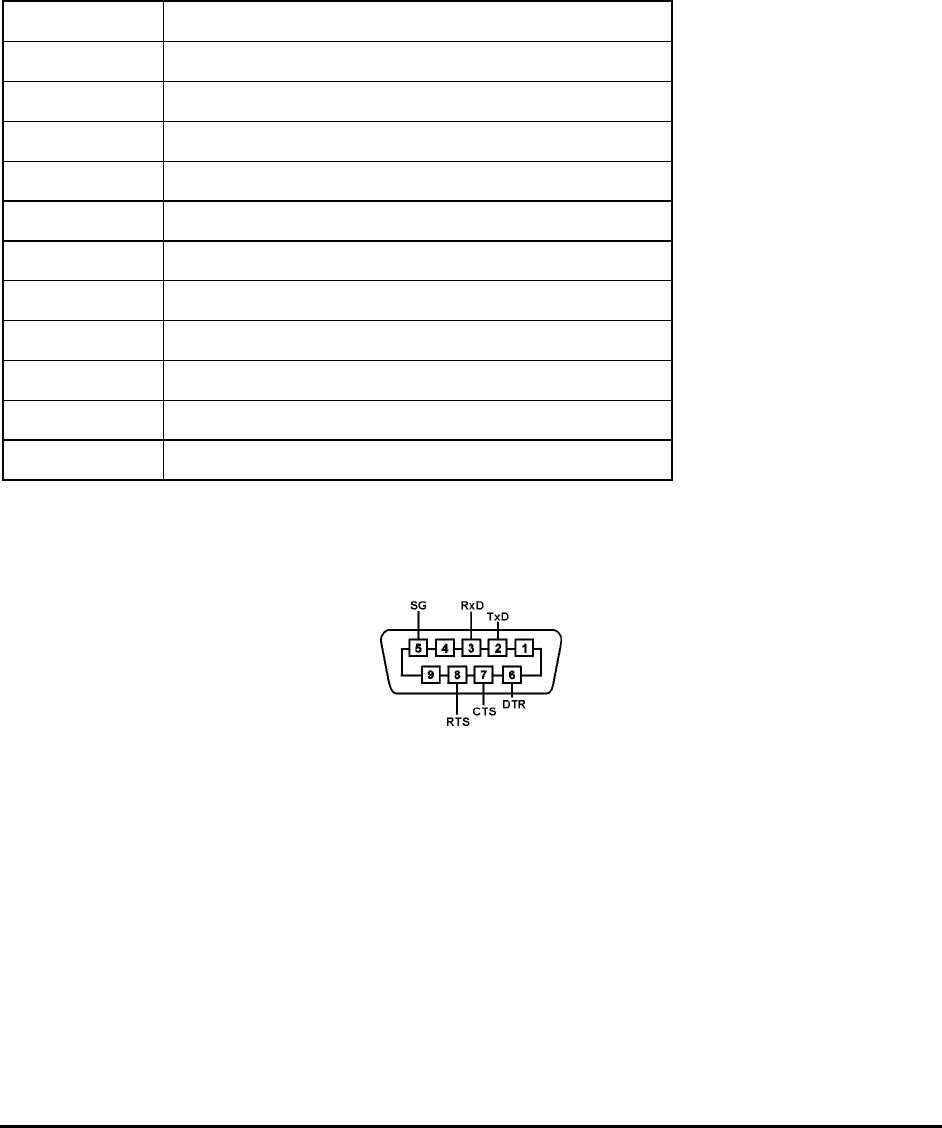

The RS232 pin assignment is shown in Figure 15.
Figure 15: RS232 Pin Assignment
RS232 Interface Specifications
Table 8 lists the RS232 interface specifications.
