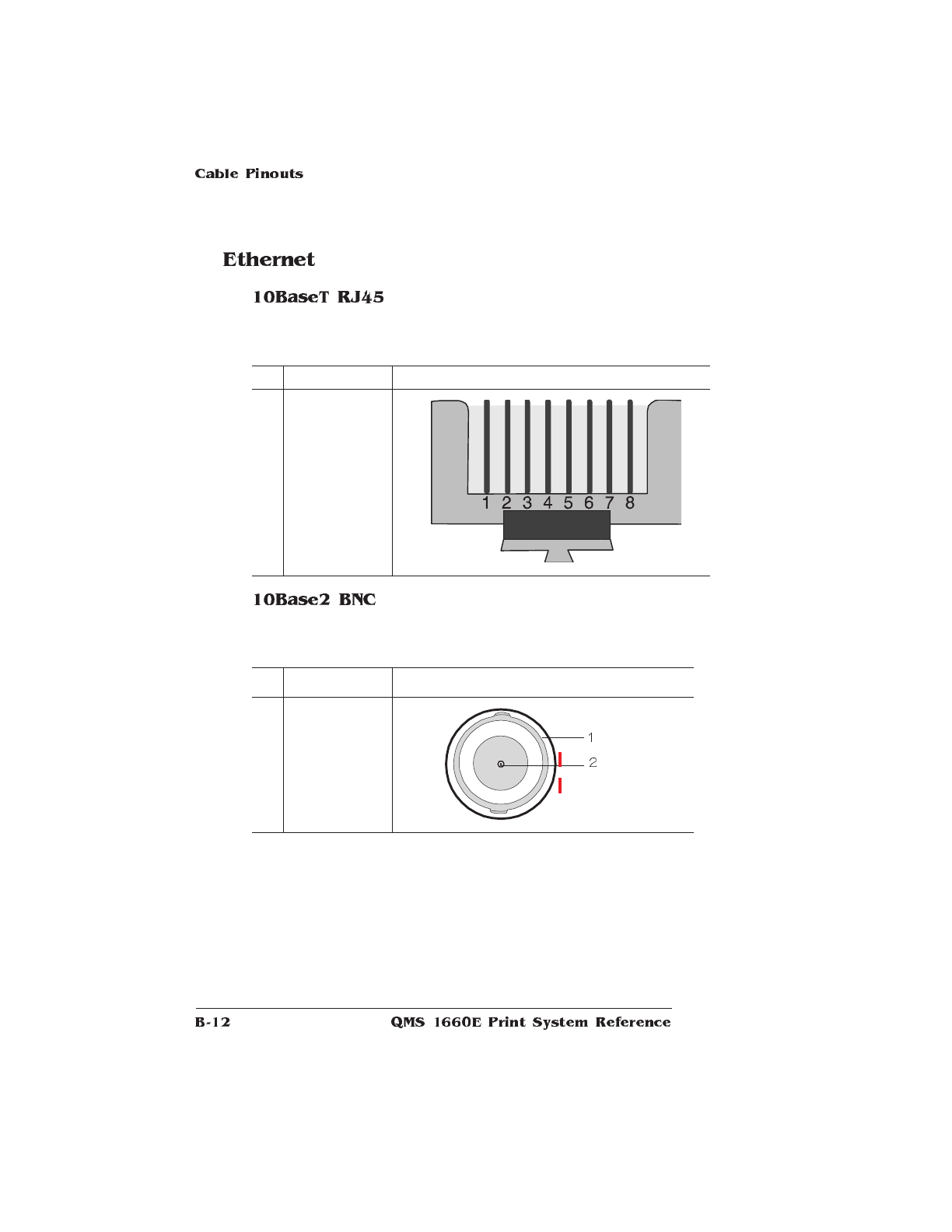

The following table provides the pinouts for the 10BaseT RJ45 Ether-
net interface:
The following table provides the pinouts for the 10Base2 BNC
Ethernet interface:
Pin Name Pinout View from Printer Interface
1 Transmit Data +
2 Transmit Data -
3 Receive Data +
4 No Contact
5 No Contact
6 Receive Data -
7 No Contact
8 No Contact
Pin Name Pinout view from Printer Interface
1Ground
2 Signal
