Removal and replacement procedures 4–37

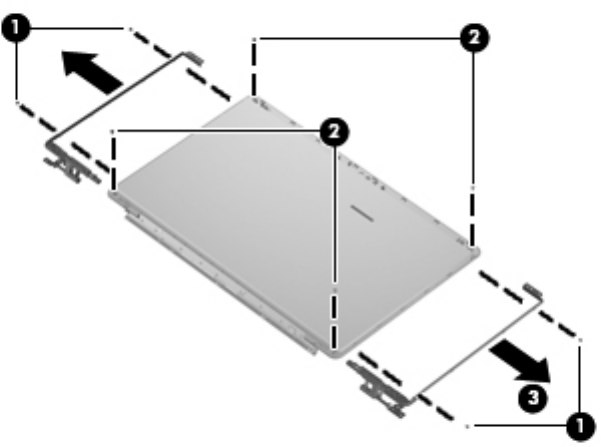

29. Remove the four Phillips PM2.0×4.0 screws 1 that secure the display hinges to the display panel.
30. Remove the four Phillips PM2.5×7.0 screws 2 that secure the display hinges to the display panel.
31. Remove the display hinges 3. The display hinges and display hinge bracket are included in the Display
Hinge Kit, spare part number 496874-001.
Reverse this procedure to reassemble and install the display assembly.
