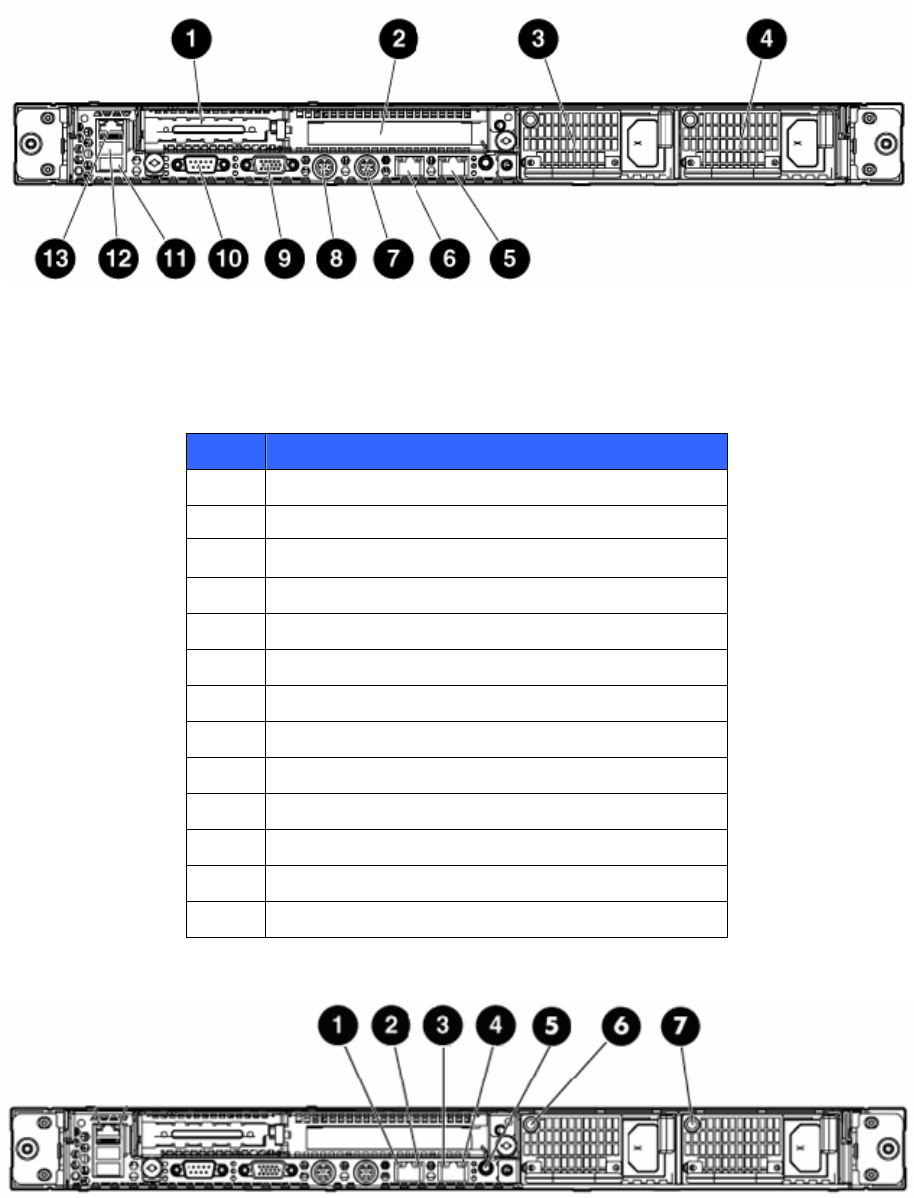

Figure 4 – Rear Panel Components
Descriptions of components on the rear panel are given in Table 4 – Rear Panel Components Descriptions.
Table 4 – Rear Panel Components Descriptions
Item Definition
1 PCI Express expansion slot 1 (Blocked)
2 PCI Express expansion slot 2 (Blocked)
3 Power supply bay 2
4 Power supply bay 1
5 NIC connector 1 (Ethernet)
6 NIC connector 2 (Ethernet)
7 Keyboard connector
8 Mouse connector
9 Video connector
10 Serial connector
11 Universal Serial Bus (USB) connector 1 (Blocked)
12 USB connector 2 (Blocked)
13 Integrated Lights-Out (iLO) 2 NIC connector (Blocked)
The seven LEDs on the rear panel are illustrated in Figure 5 – Rear Panel LEDs.
Figure 5 – Rear Panel LEDs
