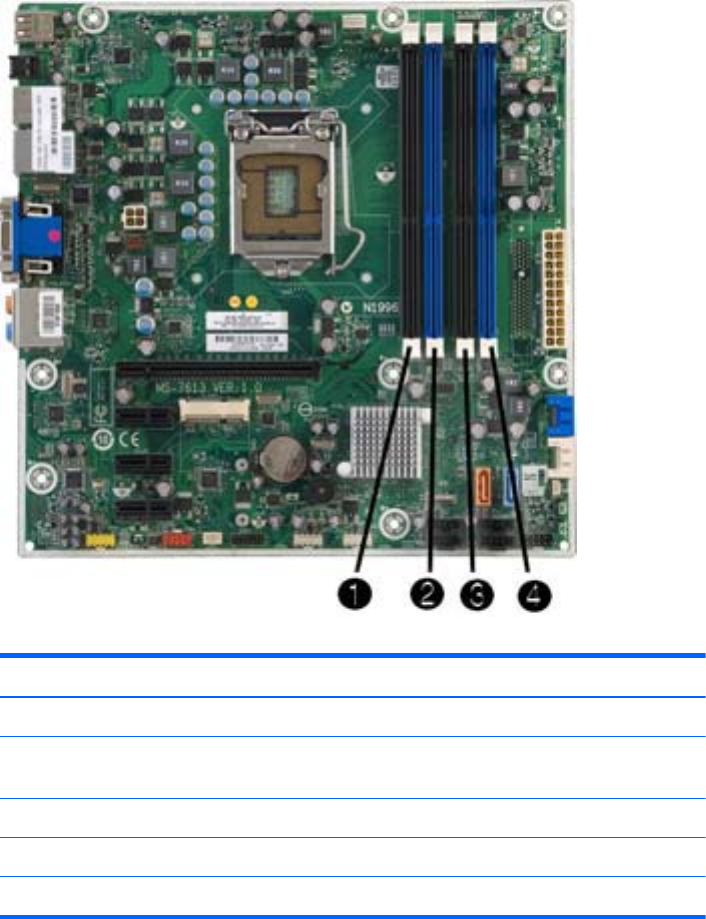

Figure 5-6 DIMM Socket Locations – HP Pro 3130
Table 5-3 DIMM Socket Locations – HP Pro 3130
Item Description Socket Color Insertion Order
1 XMM1 socket, Channel B Black 3
2 XMM2 socket, Channel B
(populate first)
Blue 1
3 XMM3 socket, Channel A Black 4
4 XMM4 socket, Channel A Blue 2
NOTE: A DIMM must occupy the XMM2 socket.
Memory
51
