Upper Feed Roller Removal
7-60 Removal/Replacement Procedures

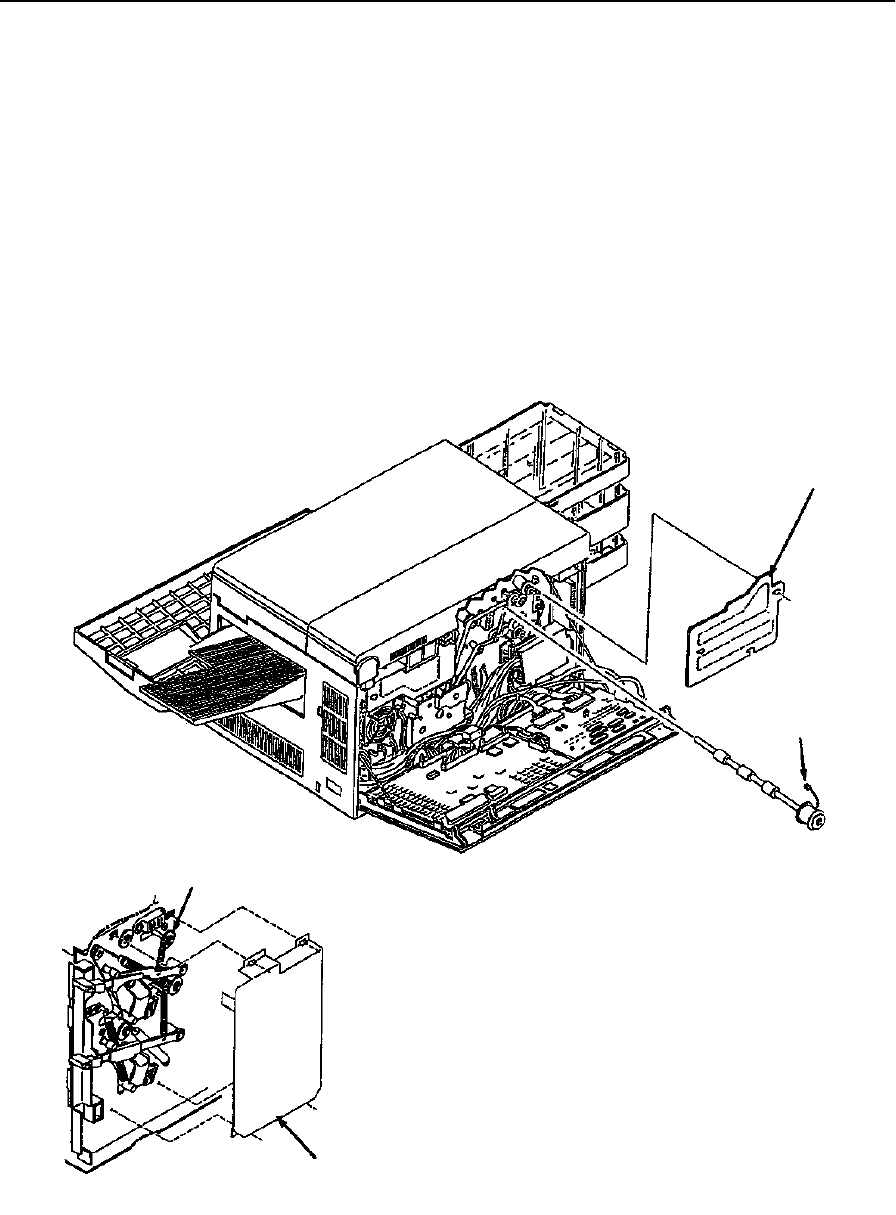

Upper Feed Roller Removal
To remove the upper feed roller:
1 Open the front and back covers.
2 Remove the paper feed drive cover (three screws).
3 Disconnect CN66.
4 Remove the paper feed drive belt from the upper feed roller gear.
5 Remove the cassette release cover (two screws).
6 Remove the front C-clip and bearing.
7 Slide the upper feed roller out the back of the printer.
Paper Feed
Drive Cover
CN66
C-Clip and Bearing
Front Detail
Cassette Release Cover
