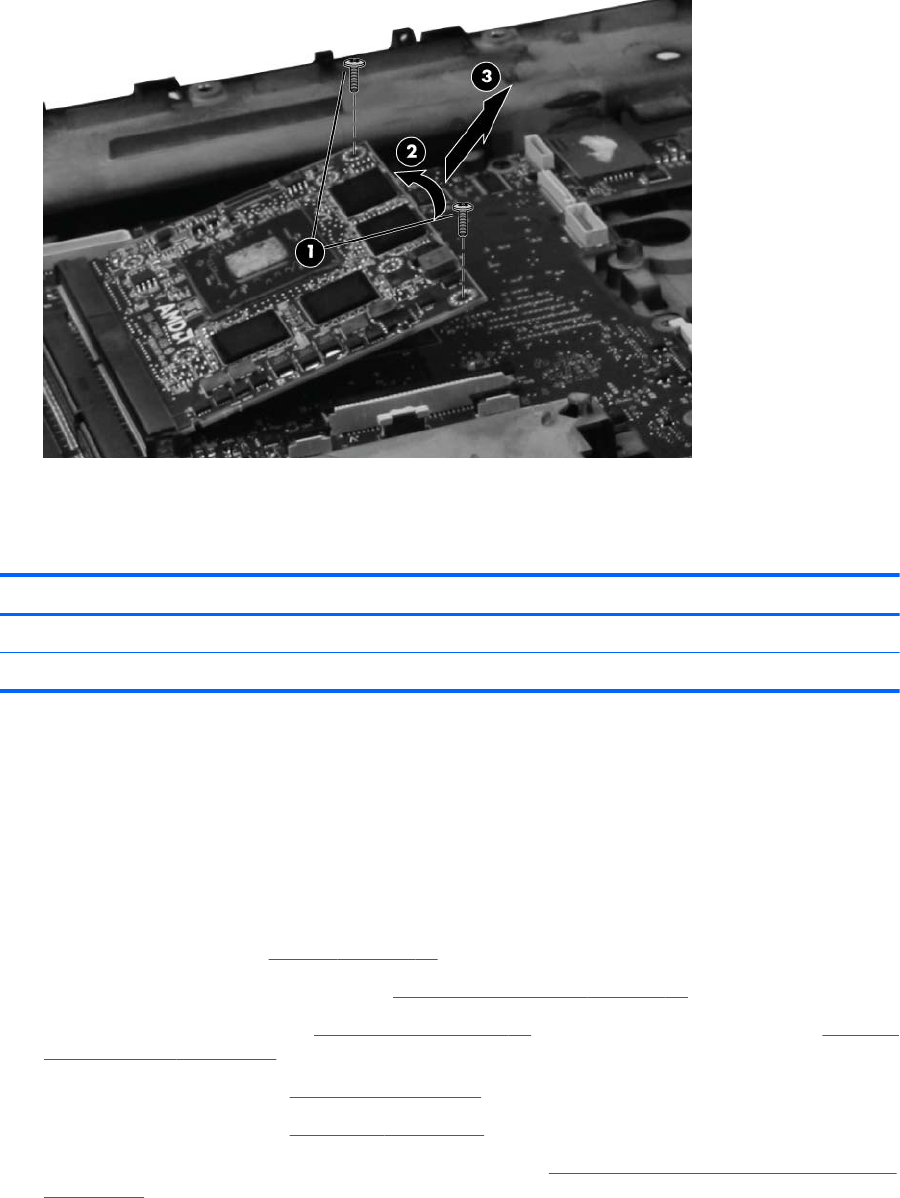

3. Remove the graphics board (3) out to the right.
Reverse this procedure to install the graphics board.
Processor heat sink
Description Spare part number
For use only with computer models equipped with quad-core processors 653629-001
For use only with computer models equipped with dual-core processors 652542-001
Before removing the processor heat sink, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 45)
5. Remove the service access cover (see
Service access cover on page 46).
6. Remove the optical drive (see
Optical drive on page 58) or upgrade bay hard drive (see Upgrade
bay hard drive on page 60).
7. Remove the keyboard (see
Keyboard on page 65).
8. Remove the top cover (see
Top cover on page 81).
9. Remove the fan/graphics board heat sink assembly (see
Fan/graphics board heat sink assembly
on page 68).
Component replacement procedures 73
