EN Internal assemblies 83
To reinstall
The Fuser Pressure Plate is kept in place by four locking mechanisms in each corner. Place the rear
slits in the plate over the rear brackets that hold the Fusing Assembly (Figure 6-12, callout 1). Lower
the plate over the retaining clips, pressing on both sides of the Fuser Pressure Plate (Figure 6-12,
callout, 2). It is important that the spring is placed over the positioning pin (callout 3) because
inadequate pressure will cause fusing problems. Replace the screws.

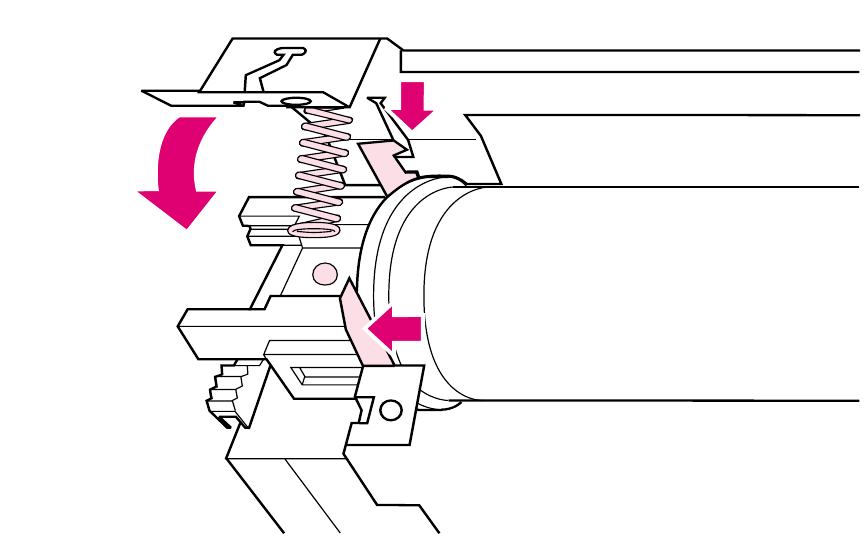

Figure 6-12 Fuser Pressure Plate replacement
