Removal and replacement procedures 71
14.

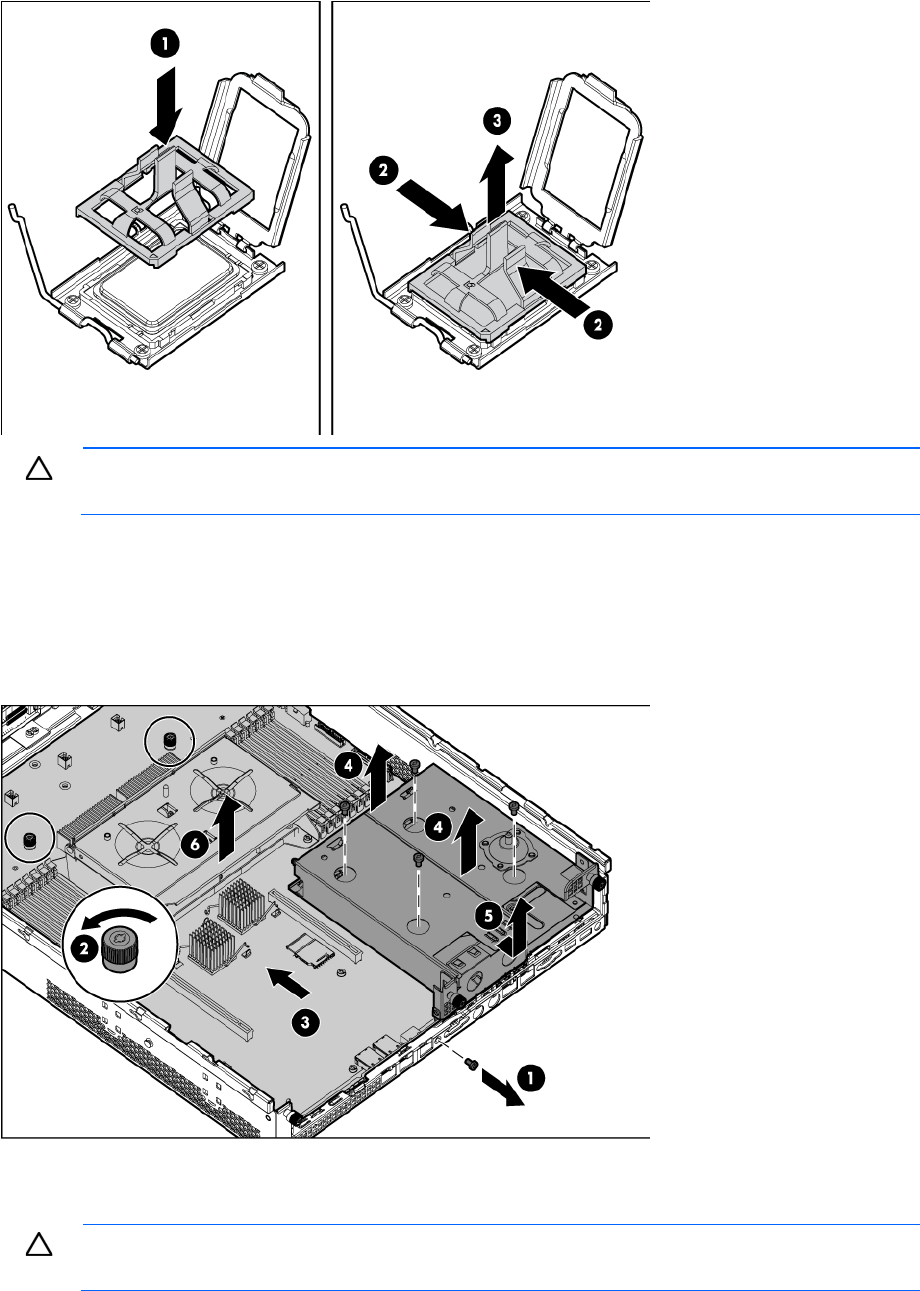

Using the processor tool, remove the processor from the system board.
CAUTION: To avoid damage to the processor, do not touch the bottom of the processor,
especially the contact area.
15. Disconnect all cables connected to the system board.
16. Remove the retaining screw at the rear of the chassis.
17. Loosen the system board thumbscrews.
18. Remove the power supply cage assembly ("Power supply cage assembly" on page 68).
19. Remove the failed system board.
To replace the system board:
1. Install the spare system board.
CAUTION: The pins on the processor socket are very fragile. Any damage to them may require
replacing the system board.
