Installing the Switch
Installation Procedures
Installing the Switch
2. (Optional) Install or Remove a cl Module
Caution It is recommended the power to the switch be removed before inserting or
extracting the expansion module. If the expansion module is inserted or
removed with the switch powered on, a reset will occur. Only install or remove
these modules during scheduled downtime.
1. Remove the cover plate
2. Insert the module aligning with the guides in the slot.
3. Once the contacts have engaged, use the extractor handles to seat the
module completely.
4. Tighten the captive screws.
Refer to the ProCurve Switch cl Modules Installation Guide for more details.
If you have installed a media flex module, you can now install a transceiver.
See the following step.

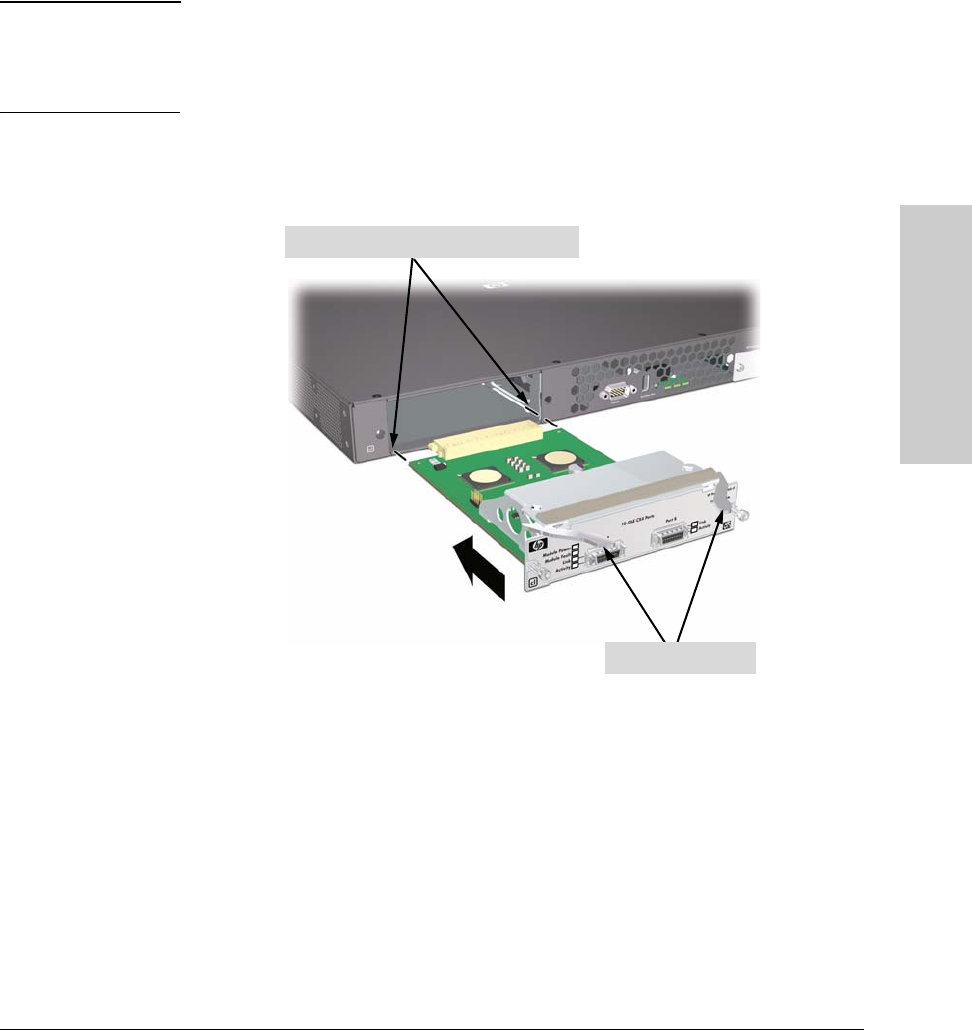

Align the edges of the board with guides
Extractor Handles
