Spanning Tree Protocol
74
Configuring Switch 1 (BBI example)
1. Configure port and VLAN membership on Switch 1 as described in the “Configuring ports and
VLANs on Switch 1 (BBI example)” section, in the “VLANs” chapter of this guide.
2. Add VLAN 2 to Spanning Tree Group 2.

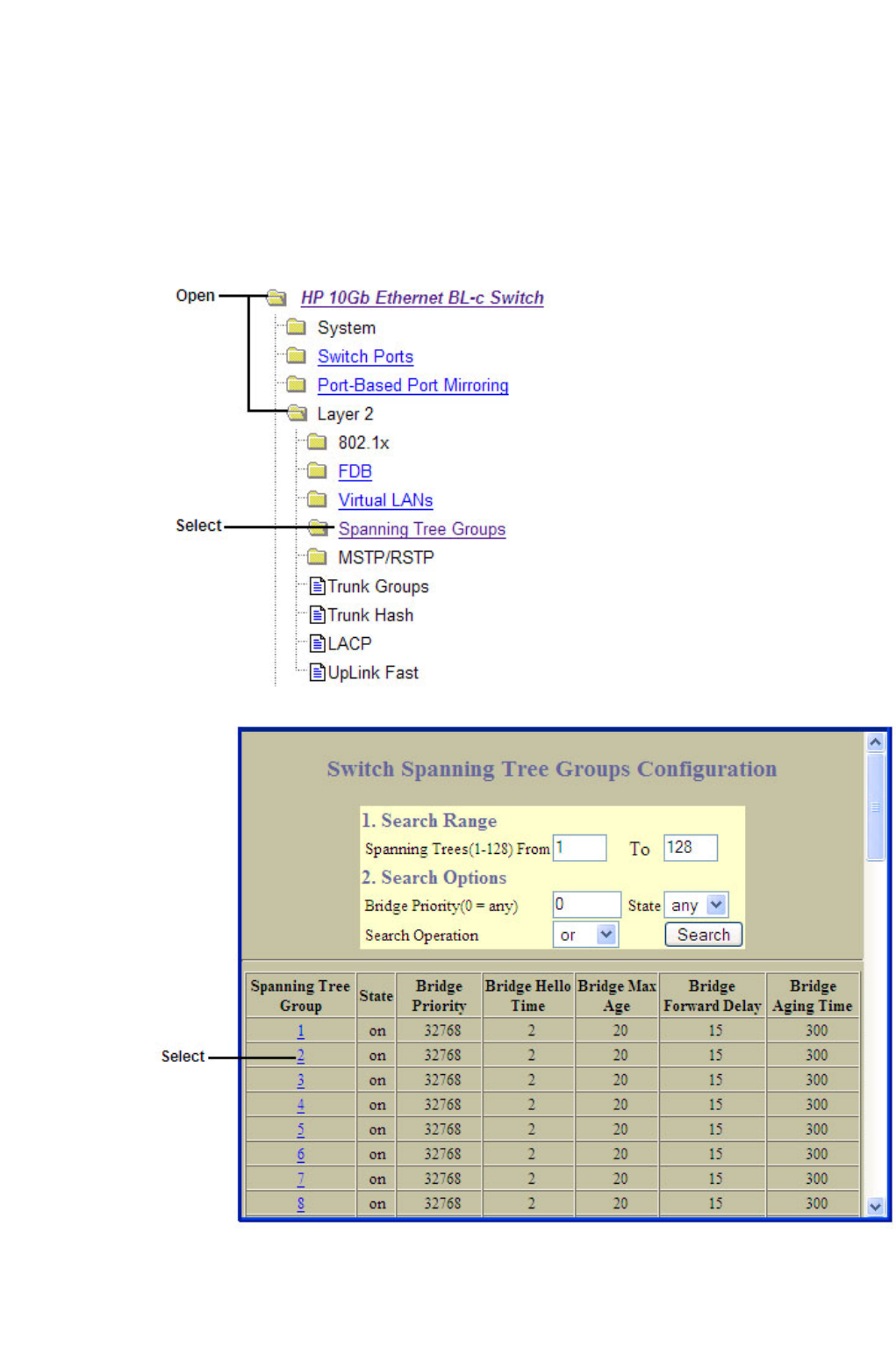

a. Click the Configure context button on the Toolbar.
b. Select Spanning Tree Groups (click the underlined text, not the folder).
c. Select a Spanning Tree Group number.
