WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.



If you need help with your new hose reel, call our Tech Support at: (570) 546-9663.

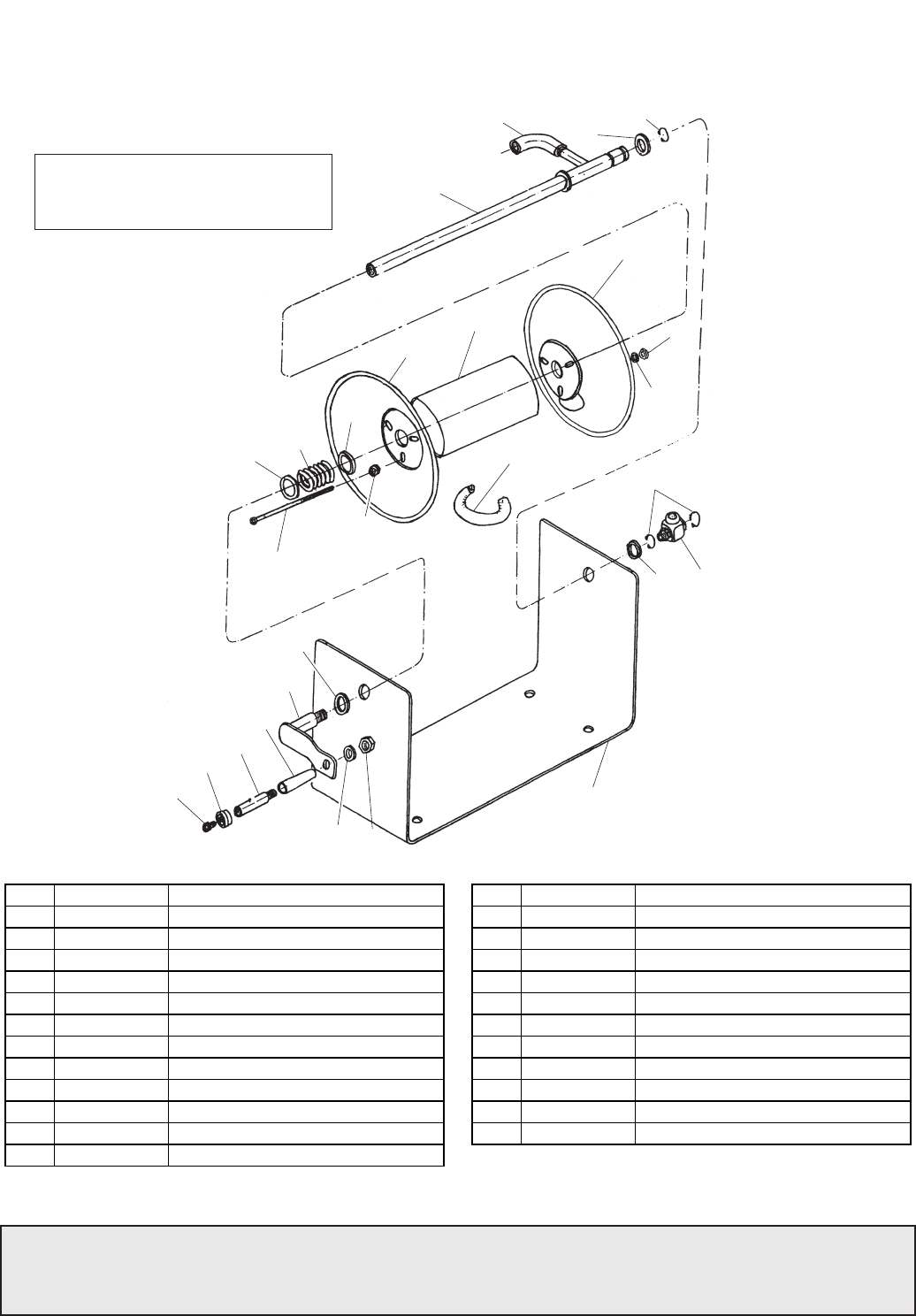

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PH0614001 BASE (H0614) 14 PH0614014 AXLE (H0614)

1 PH0615001 BASE (H0615) 14 PH0615014 AXLE (H0615)

2 PH0614002 CAP SCREW 16 PH0614016 PIPE ELBOW 3/8 NPT

3 PH0614003 RUBBER SLEEVE 18 PH0614018 EXT RETAINING RING 22

4 PH0614004 HANDLE SHAFT 21 PH0614021 SWIVEL CONNECTER 3/8 X 3/8 NPT

5 PH0614005 HANDLE 23 PH0614023 FLAT WASHER 8MM

6 PH0614006 CRANK 24 PH0614024 LOCK NUT M8-1.25

7 PH0614007 FLAT WASHER 22 25 PH0614025 SPECIAL HEX BOLT (H0614)

9 PH0614009 COMPRESSION SPRING 25 PH0615025 SPECIAL HEX BOLT (H0615)

11 PH0614011 FLANGE A 26 PH0614026 FLAT WASHER 6MM

12 PH0614012 REEL TUBE (H0614) 28 PH0614028 LOCK NUT M6-1

12 PH0615012 REEL TUBE (H0615) 29 PH0614029 GROMMET

13 PH0614013 FLANGE B

ModelH0614/H0615Parts

    

    


