CHAPTER 4: Installing Components
42

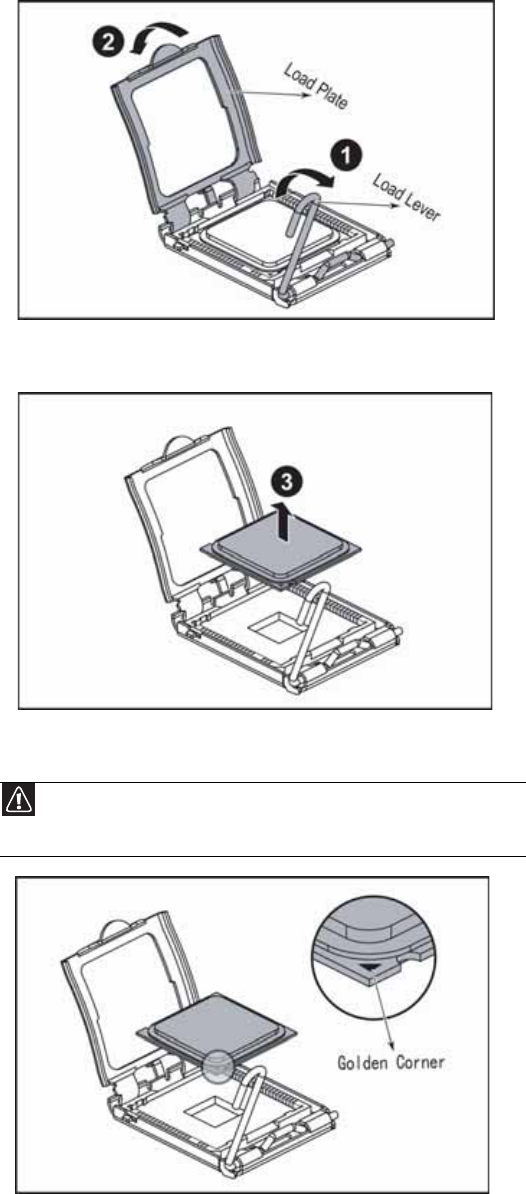

6 Unlock the load lever (1) and lift it up, then open the load plate (2). This releases the processor
(if you are replacing the processor), or prepares the socket for the installation of a new
processor (if you are adding a processor).
7 Lift the processor (3) out of the socket (if necessary) and place it in a static-free bag or case
for storage.
8 Insert the new processor into the socket, making sure that the gold triangle on the corner
is situated as shown in the following illustration.
Caution
The processor only fits the socket when oriented as indicated. Do not force
the processor into the socket. You may bend or damage the processor. If the
processor does not fit completely, check its orientation and check for bent pins.
