RAMP HANDRAIL ASSEMBLY
3.1.
Install ramp handrails onto ramps.
IMPORTANT:
For this process, you will need to refer SECTION
4 of the MODULAR RAMP ASSEMBLY MANUAL that accompanied the ramp purchase.
4.
CONNECTING RAMP HANDRAILS TO THE ANGLE PLATFORM
4.1.
After installing the ramp handrails, connect the two handrails adjacent to the “short” side of the
angle platform first. This connection is made using the included two 1-1/2” diameter handrail tubes
and four of the adjustable elbows. Short sections will be cut from each 1-1/2” diameter handrail
tube.
IMPORTANT:
Do not cut both short sections from the same piece tube as these tubes will be
used later to connect ramp handrails on the “long” side of the angle platform.
4.2.
Install and align the adjustable elbows. Measure and cut the 1-1/2” diameter handrail tubes
connecting the ramp handrails as described in SECTION 5, CONNECTING HANDRAILS WITH
ADJUSTABLE ELBOWS. FIG. 4 shows the completed connection.

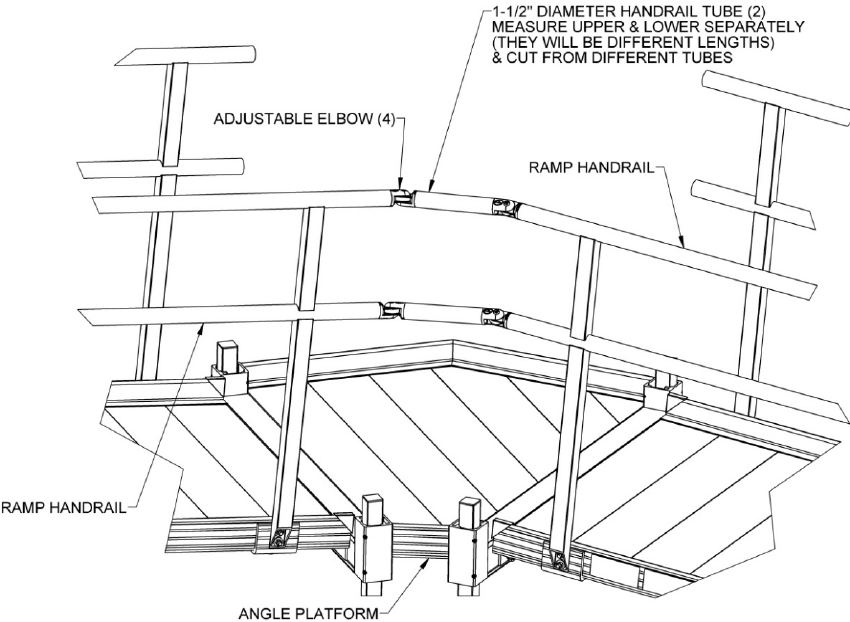

FIG. 4
