<102> ThinConnect4

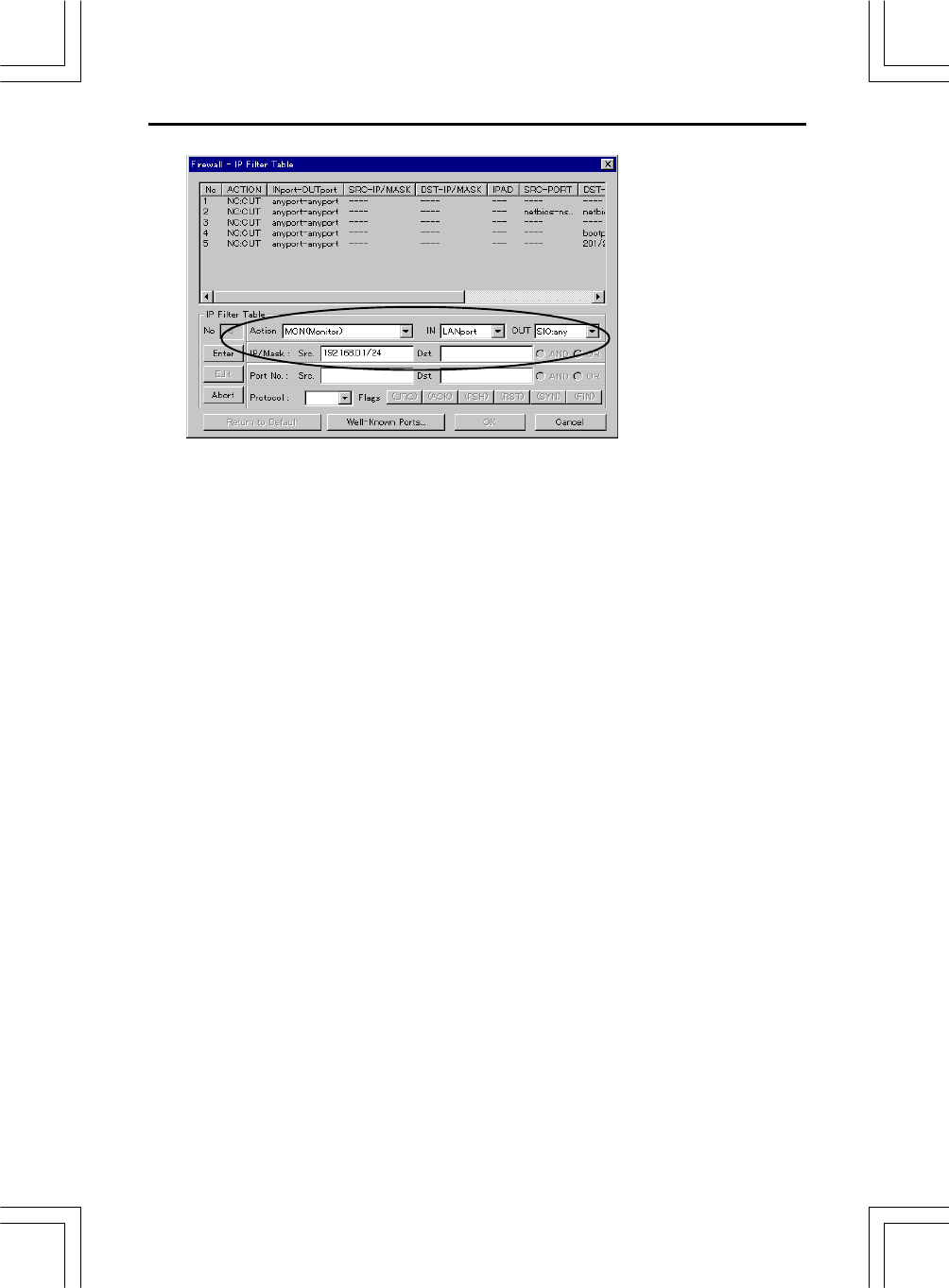

“IP/Mask: Src.”
Select IP address or Network address from the Source.
Enter IP address/sub net masks bit numbers in the filed, if the sub masks bit numbers
is omitted, that single IP address will be chosen.
“IP/Mask: Dst.”
Select IP address or Network address from Destination.
Enter the same way as “IP/Mask: Src.” settings.
Example:
• When object is IP Address: 192.168.0.1, Network Address of
Subnet Mask: 255.255.255.0 –> enter “192.168.0.1/24”
• When object is IP Address: 192.168.0.1, Network Address of
Subnet Mask: 255.255.255.128 –> enter “192.168.01/25”
• When object is IP Address: 192.168.0.44 of
IP Address –> enter “192.168.0.44”
“IP/Mask: AND/OR”
Active only when both “Src.” and “Dst.” are set.
• “AND”: Objected when both conditions of “Src.” and “Dst.” are met.
• “OR”: Objected when either one condition of “Src” or “Dst.” is met.
