CONNECTION BLOCK
A
FRONT OF MOUNT

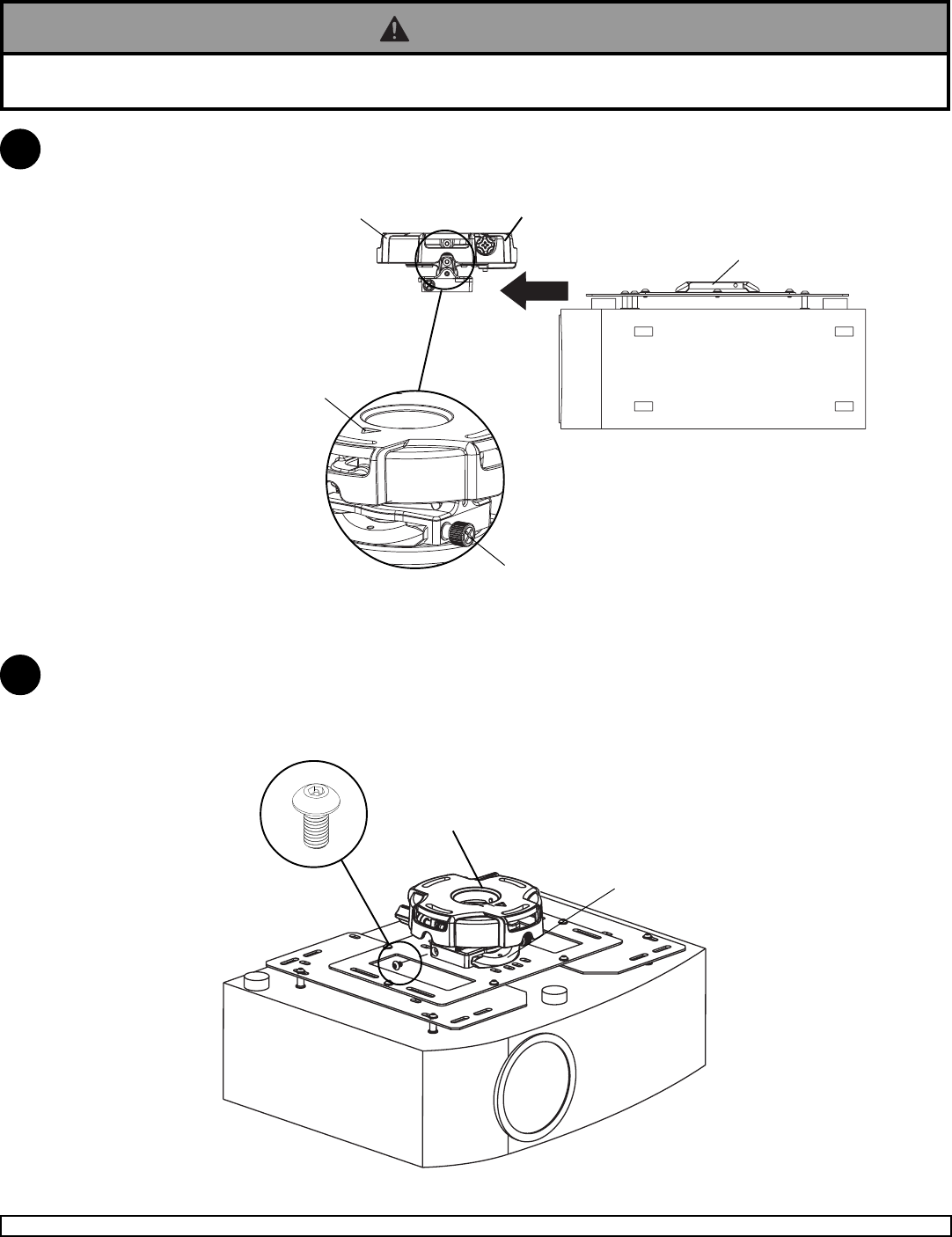

Slide connection block with projector into projector mount assembly (A) as shown. Tighten captive screw to secure
projector to projector mount assembly (A).
IMPORTANT: For security installations, insert one #10-32 x 1/4" socket pin screw (I) through projector mount
assembly (A) and into connection block as shown.
4
5
A
CONNECTION BLOCK
Always use an assistant or mechanical lifting equipment to safely lift and position the projector.
WARNING
Installing Connection Block to Projector Mount Assembly
CAPTIVE
SCREW
ARROW
INDICATES
FRONT OF
MOUNT
I
