Setting the
adjust lever: The adjust lever on the carriage unit must be set to the proper position for
the paper thickness, as shown in Table 1-6.
Table 1-6. Adjust Lever Settings
Lever Position Paper Paper Thickness
LEFT
(Vertical)
Cut Sheets
0.08 ∼ 0.11 mm
(0.003 ∼ 0.004 in.)
RIGHT
(Horizontal)
Envelopes Less than 0.5 mm (0.020 in.)
1.2.4 Ink Cartridge Specifications
Black
Type: Exclusive cartridge
Color: Black
Print capacity: 1.2 million characters (315 dots/character, Roman 10 cpi)
Life: The effective life from the indicated production date is 2 years.
Storage temperature:
−30 ∼ 40° C(−22 ∼ 104° F)(Storage:amonthorlessat40°C (104° F))
−30 ∼ 60° C(−22 ∼ 140° F) (Transit: a month or less at 40° C (104° F))
−30 ∼ 60° C(−22 ∼ 140° F) (Transit: 120 hours or less at 60° C (140° F))
Dimension (W × D × H): 26.9 × 67.4 × 41.8 mm (1.06 × 2.65 × 1.65 in.)
Color
Type: Exclusive cartridge
Colors: Cyan, magenta, yellow
Print capacity:
28 sheets/color (A4 or letter, full-image printing at 360 dpi)
Life: The effective life from the indicated production date is 2 years.
Storage temperature:
−30 ∼ 40° C(−22 ∼ 104° F)(Storage:amonthorlessat40°C (104° F))
−30 ∼ 60° C(−22 ∼ 140° F) (Transit: a month or less at 40° C (104° F))
−30 ∼ 60° C(−22 ∼ 140° F) (Transit: 120 hours or less at 60° C (140° F))
Dimension (W × D × H): 54.0 × 67.4 × 41.8 mm (2.13 × 2.65 × 1.65 in.)
Notes: The ink cartridge cannot be refilled; it is the only consumable article.
Do not attempt to use an ink cartridge that has exceeded its ink life.
Ink freezes at
−
3
°
C(37
°
F); however, it can be used after it returns to room temperature.
Cut Sheets Envelopes
Carriage Unit

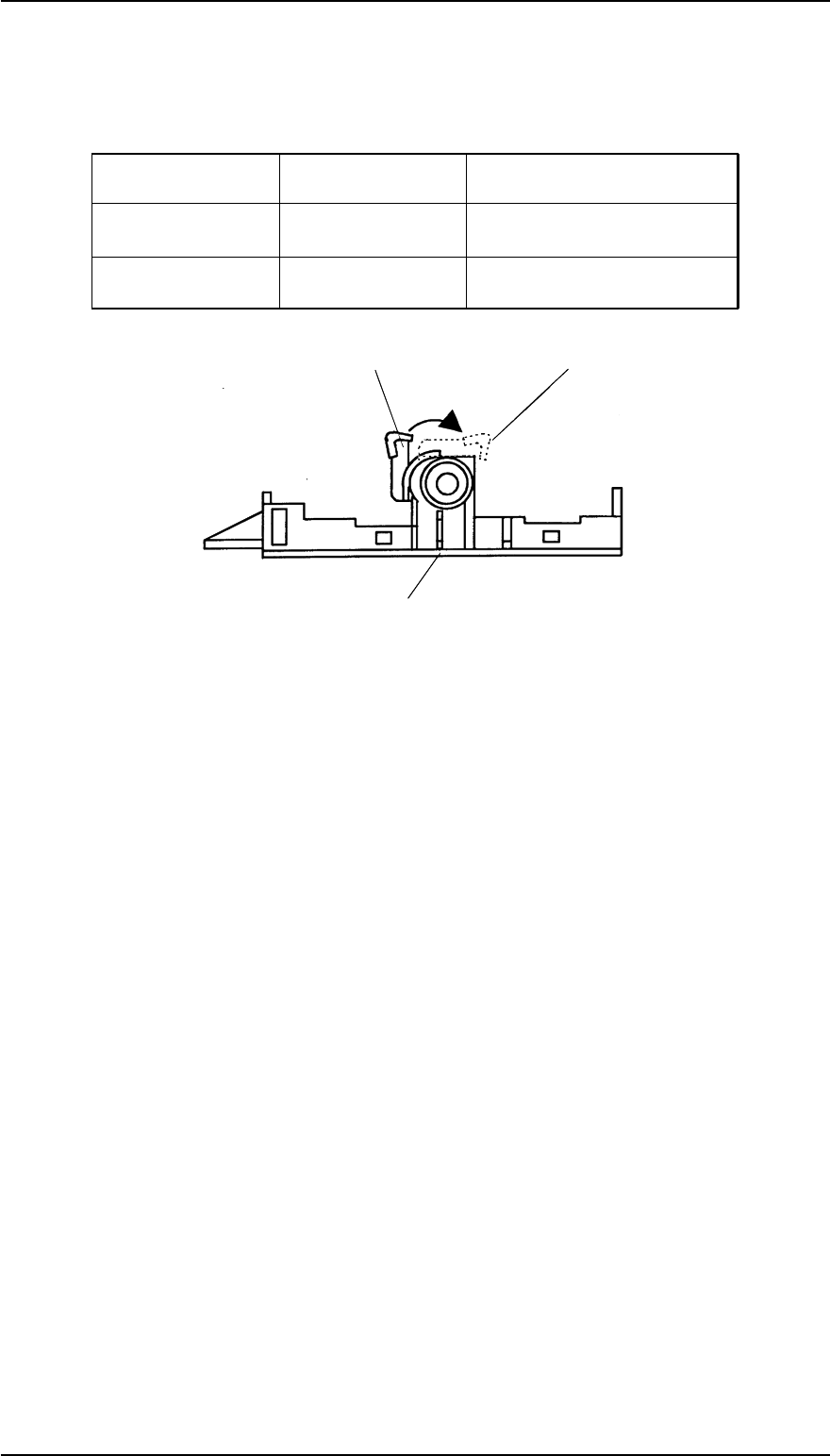

Figure 1-5. Setting the Adjust Lever
