Using the Basic Cradle
When You Are Using the Down-facing Reader Port Model
When you are using a down-facing reader port model, remove the nose guide before use.

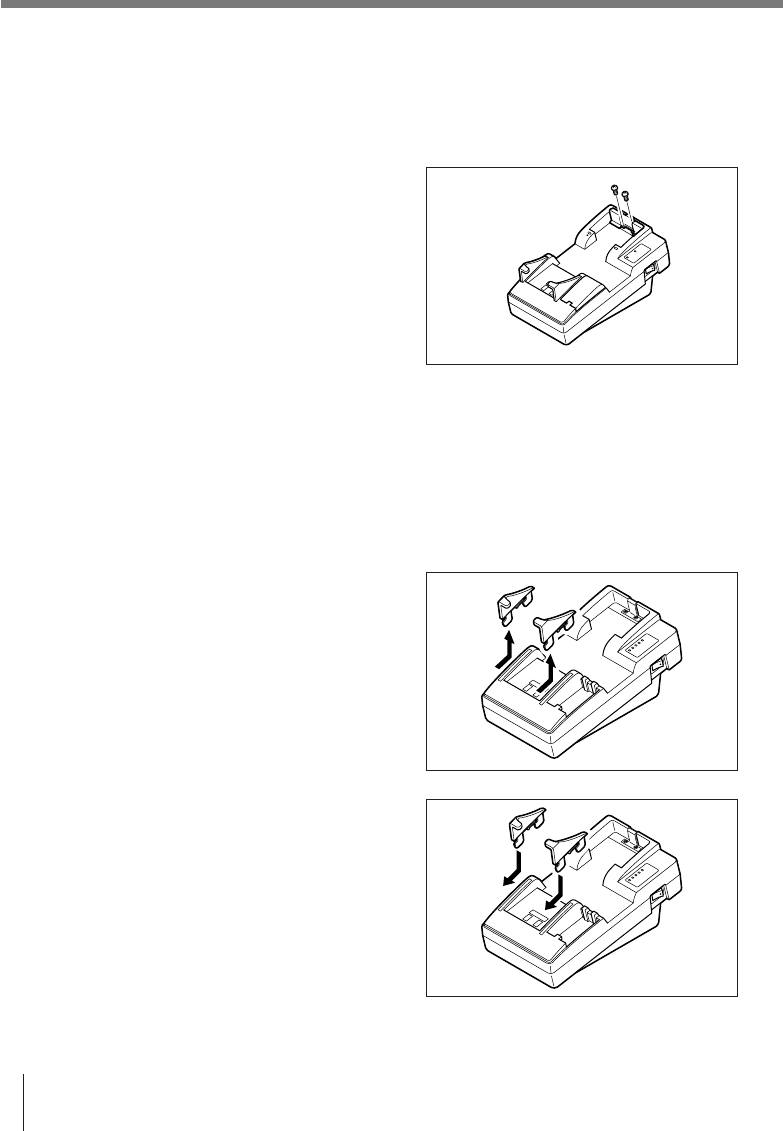

To remove the nose guide, remove the two
screws using a screwdriver.
Setting up the Basic Cradle
Use only the dedicated AC adaptor for Basic Cradle to connect to an electrical outlet.
Be sure to connect the AC adaptor and then turn on the power on the Basic Cradle before
performing any communication with the Handheld Terminal.
Power is supplied to the Handheld Terminal by the cradle.
1 Remove the two desktop guides, L and R,
installed on the cradle by sliding them toward
the rear side as shown in the illustration.
2 Insert the desktop guides, L and R, one at a
time that were accompanied with DT-930 into
each slit and then slide them toward the front
side as shown in the illustration.
