Appendix C: Optional Installations and Mode Switch Bank Settings
C-6 2M46-04R/2M46-04RDC User’s Guide
C.3 INSTALLING OPTIONAL FAST ETHERNET
INTERFACE MODULES
Figure C-3 shows the locations of the Fast Ethernet Interface Module
connectors on for ports 1 and 2 and an optional High Speed Interface
Module installed in port HSIM 1.

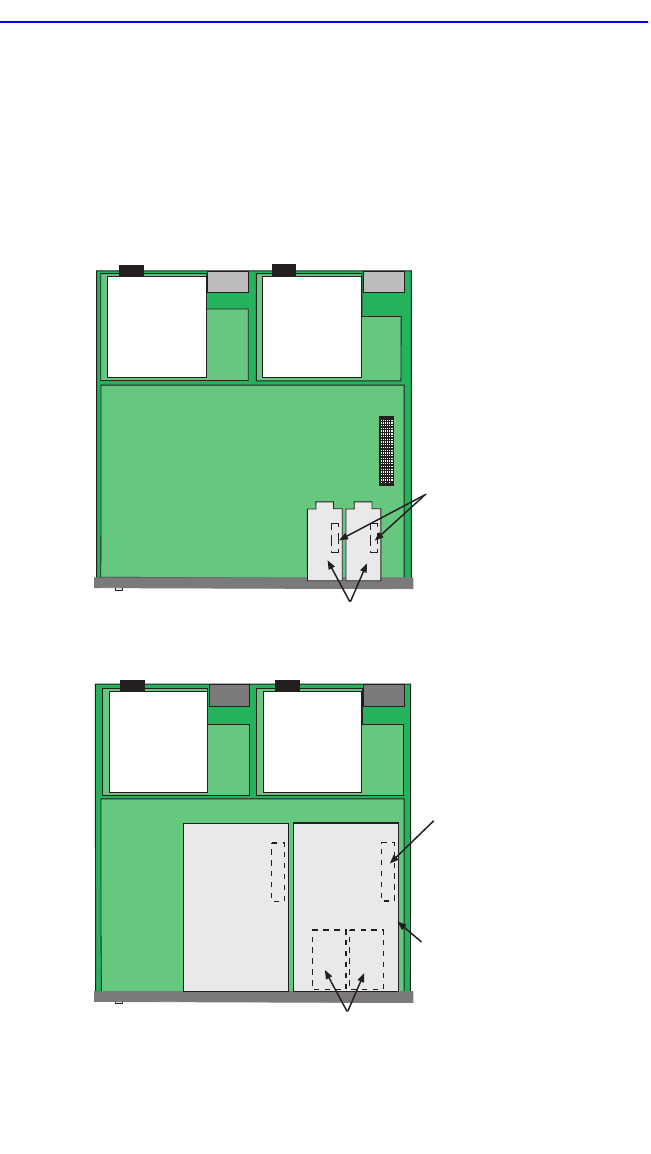

Figure C-3 Fast Ethernet Interface Module Connector Location
2314-11
Optional Fast Ethernet
Interface Modules
Connectors
FRONT PANEL
TOP VIEW WITHOUT COVER
Optional HSIM is installed
above the optional Fast
Ethernet Interface Modules
Connector
Optional interface
modules on HSIM
FRONT PANEL
Redundant
Power
Supply
Primary
Power
Supply
Redundant
Power
Supply
Primary
Power
Supply
