9 Alarms and Relay Connections
9.1 Alarm Input
The AutoDome Easy II provides two alarm inputs. Each input
can be activated by dry contact devices such as pressure pads,
passive infrared detectors, door contacts, and similar devices.
The AutoDome Easy II comes with the following alarm in/out
cable.

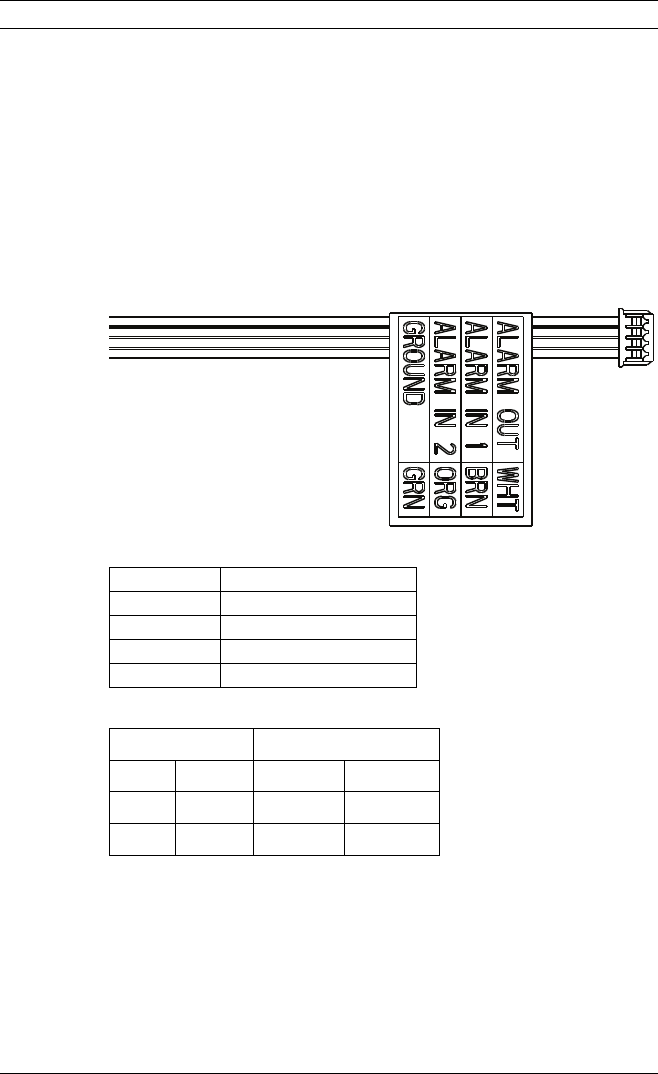

Figure 9.1 Four-wire Alarm In/Out Cable
The table below summarizes the size and distance wires.
Table 9.1 Alarm Wire Guide
You wire alarms either Normally Open (N.O.) or Normally
Closed (N.C.), and must program the alarm inputs N.O. (the
default) or N.C. through the AutoDome Easy II main menu.
Wire Color Function
White Alarm Out
Brown Alarm In 1
Orange Alarm In 2
Green Ground
Wire Size Maximum Distance
AWG mm feet meters
22 0.644 500 152.4
18 1.024 800 243.8
