Local Installation
Step 3 Connecting Servers to the Switch
(Sun MiniDIN8 Connection)
3.1 Make sure your server is powered off.

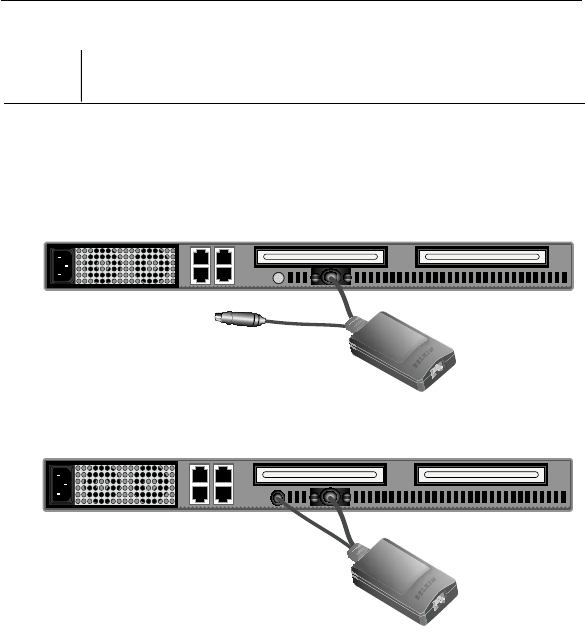

3.2 Using the Belkin OmniView SMB Server Interface Module for Legacy
Sun (F1DP101A-AL), connect the VGA connector to the monitor port on
your server. (Refer to diagram below.)
3.3 Connect the miniDIN8 connector to the miniDIN8 keyboard port on the
server. (Refer to diagram below.)
Server
Server Interface Module
