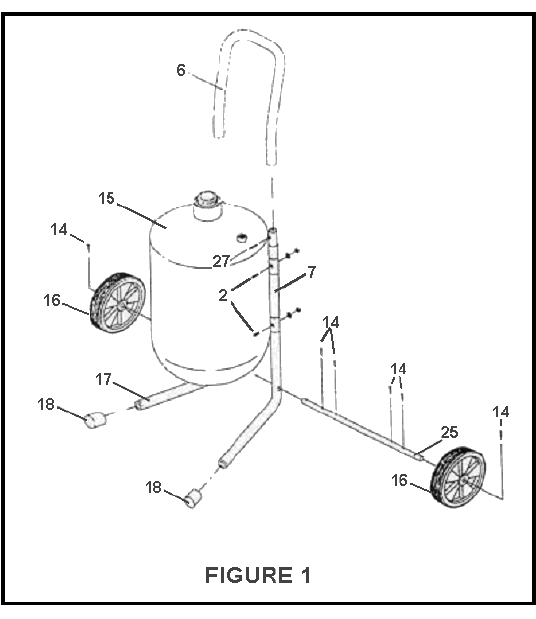

4. Attach the other wheel (#16) to the axle (#25) using the remaining cotter pin (#14).
5. Slide the handle bar (#6) onto the left leg (#7) and the right leg (#17) and secure it with two
self-tapping screws.
6. Slide the two end caps (#18) over the ends of the legs (# 7 & # 17)
Abrasive Metering Valve and Abrasive Gun Assembly (Refer to Fig 2):
1. Attach the abrasive metering valve (#26) to the side hole of the intake manifold (#12). Attach
one of the elbow connectors(#13) and one of the hose adaptor (#23) to either remaining hole of
the intake manifold (#12)
2. Attach the other side of the abrasive metering valve (#26) to the bottom of the tank.
3. Slide the hose clamp (#22) over either side of the abrasive hose (#21). Do not tighten yet.
4. Slide the two ends of the abrasive hose (#21) onto the abrasive gun (#24) respectively. Tighten
the hose clamps (#22) very securely.
