Relay card Page 4 Release: May 2008

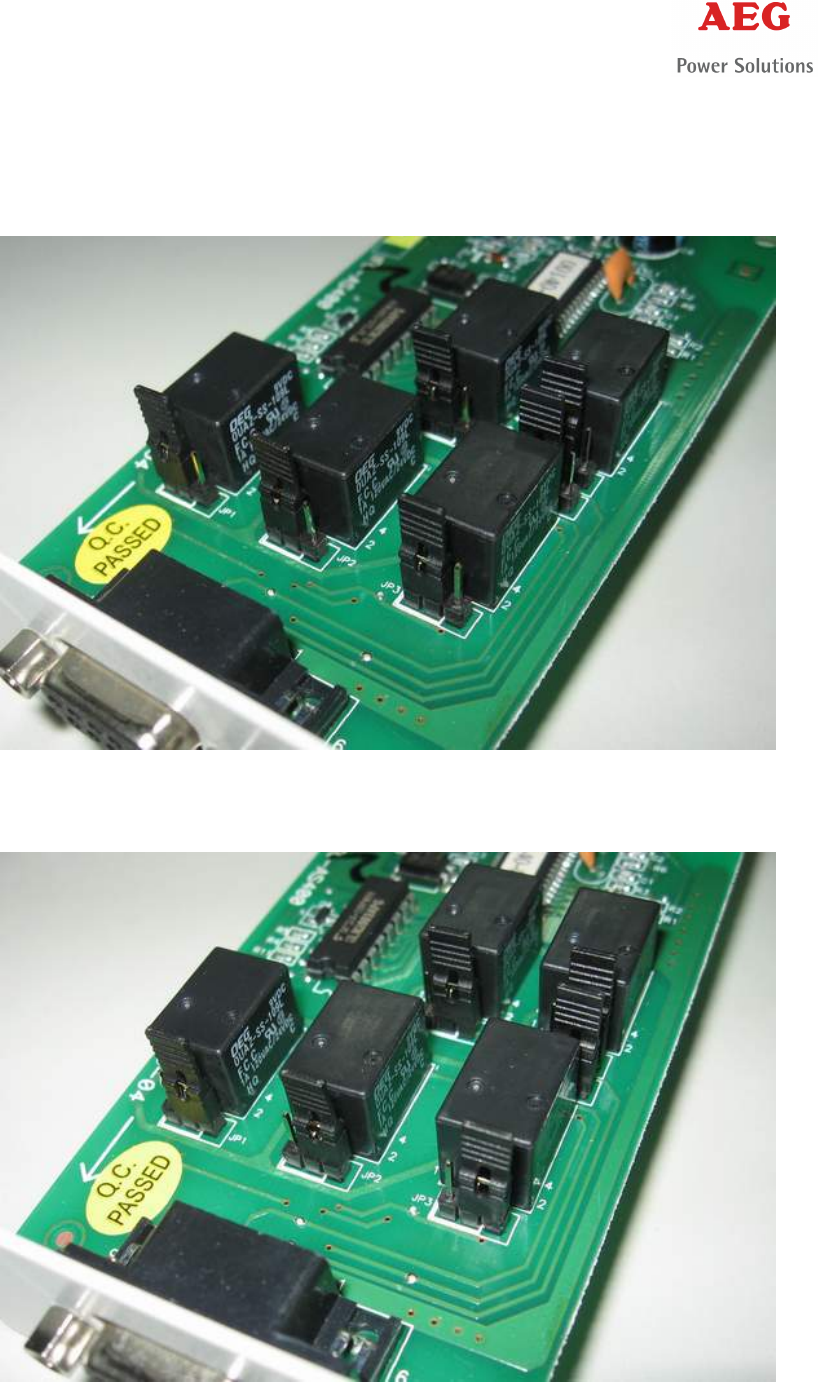

To achieve ACTIVE CLOSE dry-contact signal, the jumper should connect the 2 pins
enveloped by the small silk screen rectangle as shown in Fig. 6.
Fig. 6 Jumper setting for ACTIVE CLOSE
Fig. 7 Jumper setting for ACTIVE OPEN
