7.4 Sub-programs
Pocket/Island example 6

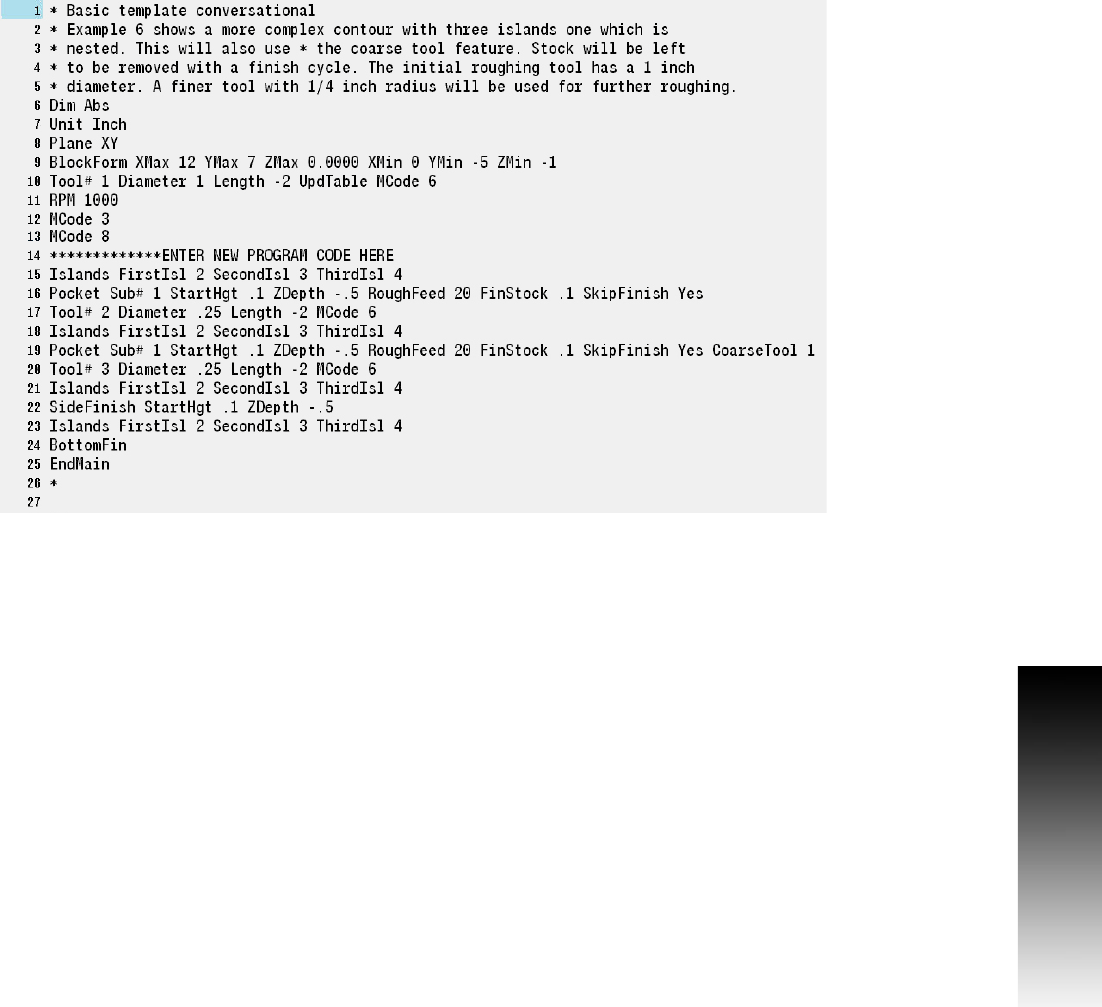

Example 6 shows a more complex contour with three islands one of
which is nested. This will also use the coarse tool feature. Stock will
be left to be removed with a finish cycle. The initial roughing tool has
a 1” diameter. A roughing finer tool with 1/4” radius will be used for
further roughing. Finally, a finish tool is also specified. The structure of
the program is similar to the previous examples.
